دیتاشیت STF25NM60N TO_220FP TO_220 ماسفت کانال N

STx25NM60N(-1)

مشخصات دیتاشیت

نام دیتاشیت STx25NM60N(-1)
حجم فایل 610.665 کیلوبایت
نوع فایل pdf
تعداد صفحات 18

دانلود دیتاشیت STx25NM60N(-1)

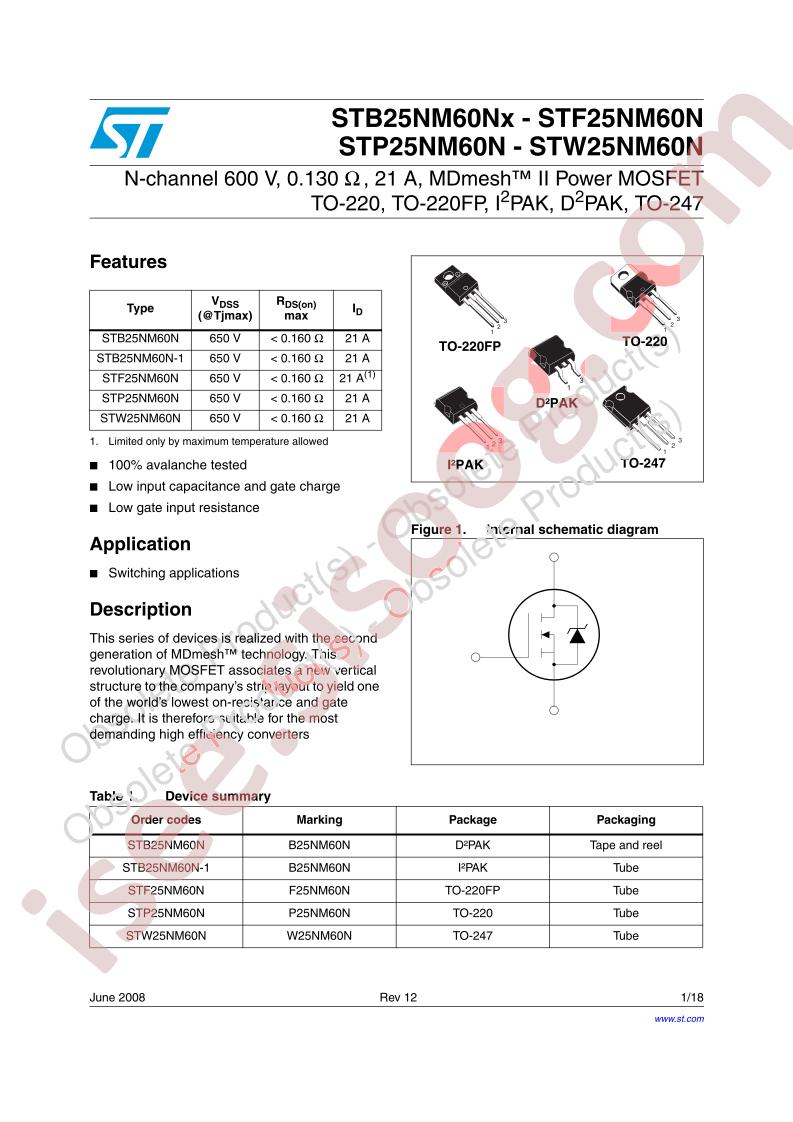

STx25NM60N(-1) Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: MDmesh™ II
  • Packaging: Tube
  • Part Status: Obsolete
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 600V
  • Current - Continuous Drain (Id) @ 25°C: 21A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 160mOhm @ 10.5A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 84nC @ 10V
  • Vgs (Max): ±25V
  • Input Capacitance (Ciss) (Max) @ Vds: 2400pF @ 50V
  • FET Feature: -
  • Power Dissipation (Max): 40W (Tc)
  • Operating Temperature: 150°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220FP
  • Package / Case: TO-220-3 Full Pack
  • Base Part Number: STF25
  • detail: N-Channel 600V 21A (Tc) 40W (Tc) Through Hole TO-220FP
