دیتاشیت UCC2893DR SOP16 SOP16 آی سی سوییچینگ
مشخصات دیتاشیت
| نام دیتاشیت | UCC2891-94 |
|---|---|
| حجم فایل | 1372.548 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 41 |

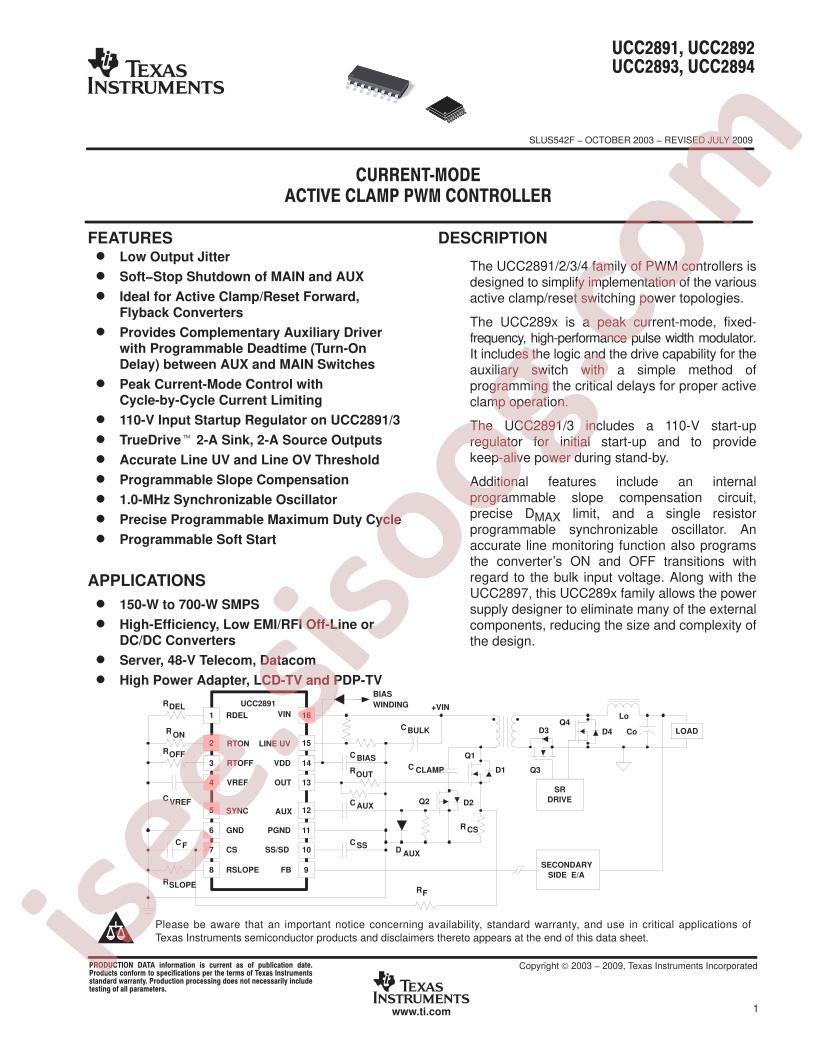

دانلود دیتاشیت UCC2891-94 |
UCC2891-94 Datasheet |
|---|
مشخصات
- Output Phases: 1
- Series: -
- Output Configuration: Positive, Isolation Capable
- Output Type: Transistor Driver
- Clock Sync: Yes
- Topology: Flyback, Forward Converter
- Packaging: Cut Tape (CT)
- Synchronous Rectifier: No
- Manufacturer: Texas Instruments
- Voltage - Supply (Vcc/Vdd): 8.5V ~ 16V
- Function: Step-Up/Step-Down
- Supplier Device Package: 16-SOIC
- Duty Cycle (Max): 70%
- Serial Interfaces: -
- Frequency - Switching: 250kHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Base Part Number: UCC289
- Number of Outputs: 1
- Part Status: Active
- Control Features: Current Limit, Enable, On Time Control, Ramp, Soft Start
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
- detail: Flyback, Forward Converter Regulator Positive, Isolation Capable Output Step-Up/Step-Down DC-DC Controller IC 16-SOIC
