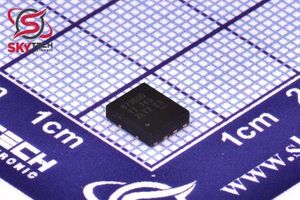

دیتاشیت CSD87350Q5D SON 5.00-mm × 6.00-mm ماسفت
مشخصات دیتاشیت
| نام دیتاشیت | CSD87350Q5D Datasheet |
|---|---|
| حجم فایل | 1083.687 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 23 |

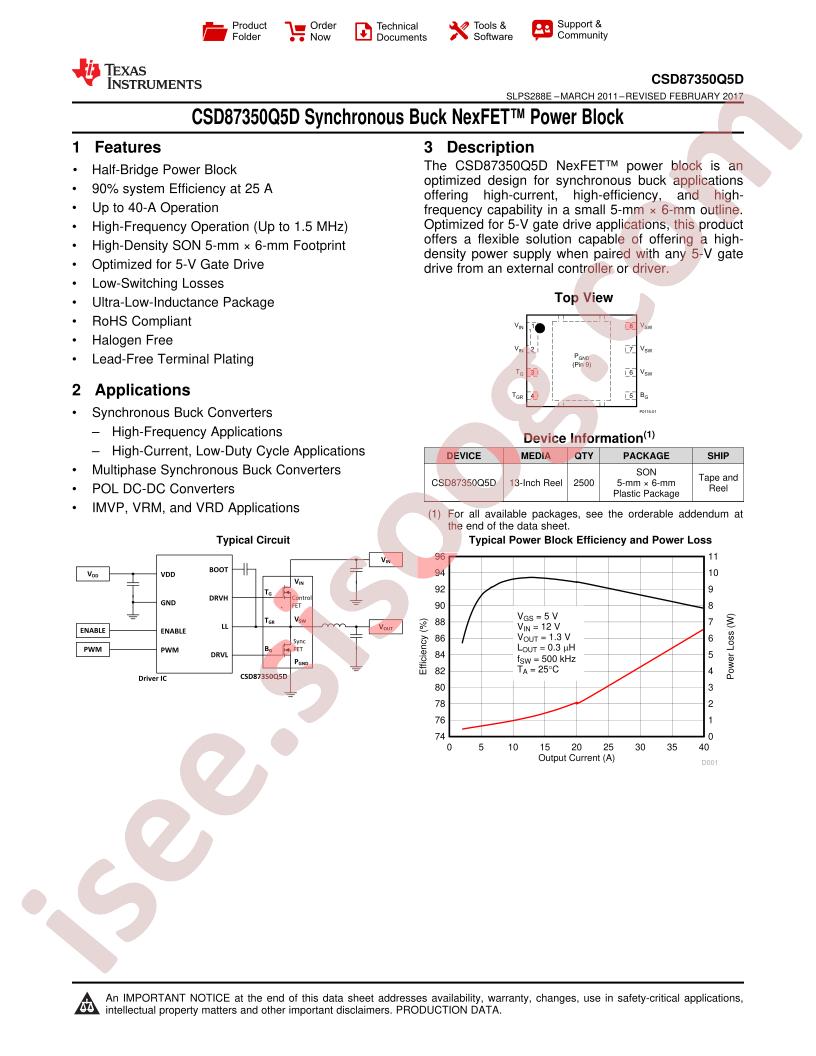

دانلود دیتاشیت CSD87350Q5D Datasheet |
CSD87350Q5D Datasheet Datasheet |
|---|
مشخصات
- Vgs(th) (Max) @ Id: 2.1V @ 250µA
- Input Capacitance (Ciss) (Max) @ Vds: 1770pF @ 15V
- Package / Case: 8-PowerLDFN
- Series: NexFET™
- Drain to Source Voltage (Vdss): 30V
- Operating Temperature: -55°C ~ 150°C (TJ)
- Gate Charge (Qg) (Max) @ Vgs: 10.9nC @ 4.5V
- Current - Continuous Drain (Id) @ 25°C: 40A
- Packaging: Cut Tape (CT)
- Supplier Device Package: 8-LSON (5x6)
- Part Status: Active
- Manufacturer: Texas Instruments
- Base Part Number: CSD87350
- FET Feature: Logic Level Gate
- Mounting Type: Surface Mount
- FET Type: 2 N-Channel (Dual)
- Power - Max: 12W
- Rds On (Max) @ Id, Vgs: 5.9mOhm @ 20A, 8V
- detail: Mosfet Array 2 N-Channel (Dual) 30V 40A 12W Surface Mount 8-LSON (5x6)
