دیتاشیت NSS20200LT1G CODE:VC* 20V 4.0A PNP SOT-23 ترانزیستور

مشخصات دیتاشیت

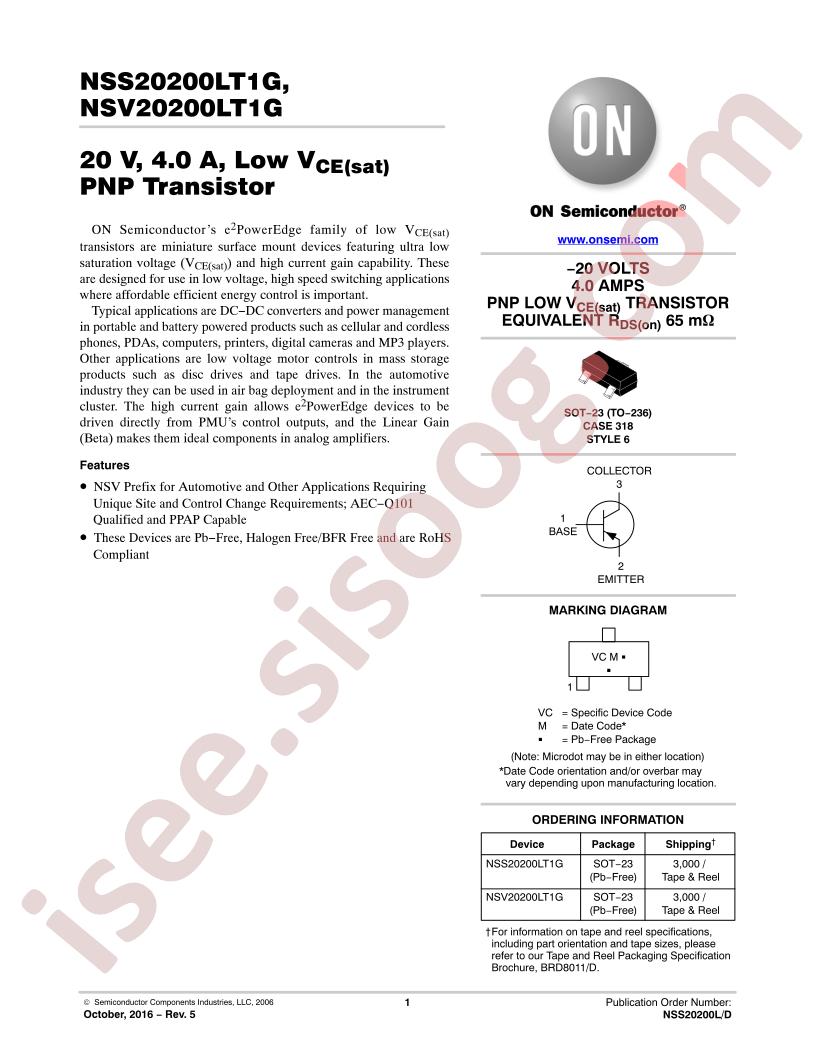

دانلود دیتاشیت NSS, NSV20200LT1G	NSS, NSV20200LT1G Datasheet

Manufacturer: ON Semiconductor
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Transistor Type: PNP
Current - Collector (Ic) (Max): 2A
Voltage - Collector Emitter Breakdown (Max): 20V
Vce Saturation (Max) @ Ib, Ic: 180mV @ 200mA, 2A
Current - Collector Cutoff (Max): 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce: 250 @ 500mA, 2V
Power - Max: 460mW
Frequency - Transition: 100MHz
Operating Temperature: -55°C ~ 150°C (TJ)
Mounting Type: Surface Mount
Package / Case: TO-236-3, SC-59, SOT-23-3
Supplier Device Package: SOT-23-3 (TO-236)
Base Part Number: NSS202
detail: Bipolar (BJT) Transistor PNP 20V 2A 100MHz 460mW Surface Mount SOT-23-3 (TO-236)
