دیتاشیت UCC28610DR UC28610 28610 SOP8
مشخصات دیتاشیت
نام دیتاشیت | UCC28610 |
---|---|
حجم فایل | 2258.578 کیلوبایت |
نوع فایل | |
تعداد صفحات | 49 |
دانلود دیتاشیت UCC28610 |

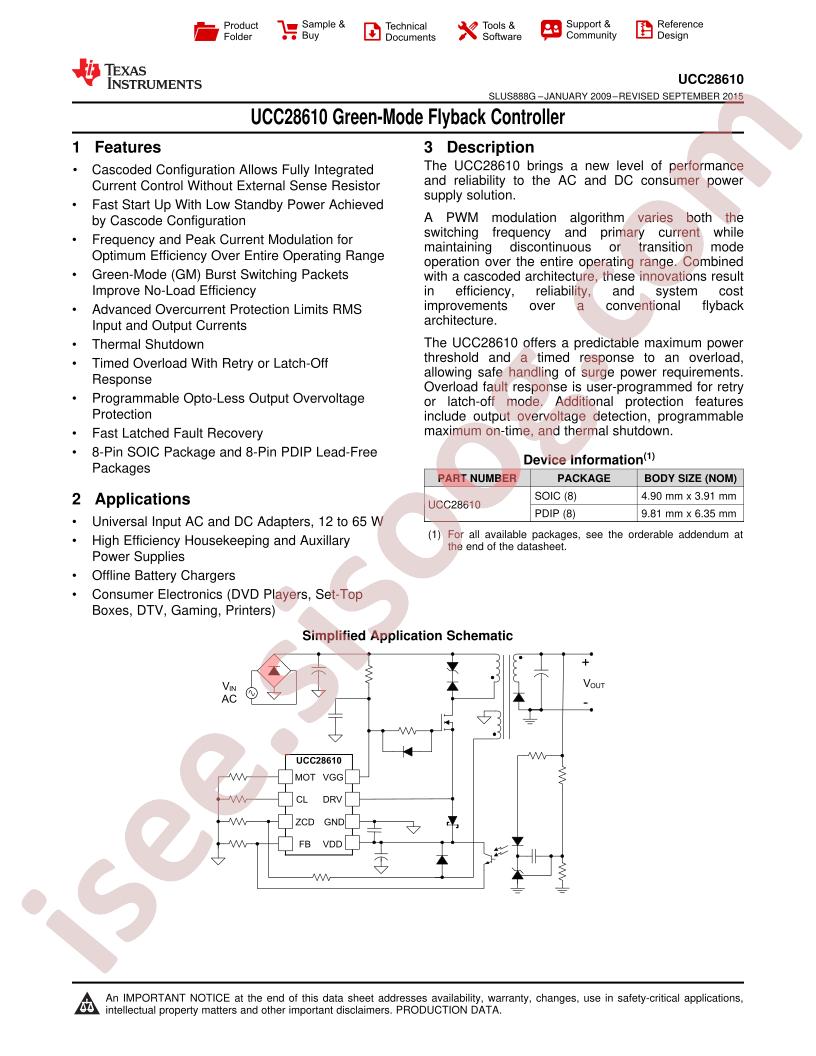

UCC28610 Datasheet |
---|
مشخصات
- Voltage - Supply (Vcc/Vdd): 8V ~ 25V
- Base Part Number: UCC286
- Voltage - Breakdown: -
- Voltage - Start Up: 10.2V
- Power (Watts): 65W
- Mounting Type: Surface Mount
- Operating Temperature: -40°C ~ 150°C (TJ)
- Internal Switch(s): No
- Fault Protection: Current Limiting, Over Temperature, Over Voltage
- Topology: Flyback
- Frequency - Switching: 30kHz ~ 133kHz
- Packaging: Cut Tape (CT)
- Duty Cycle: -
- Series: -
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Output Isolation: Isolated
- Part Status: Active
- Supplier Device Package: 8-SOIC
- Control Features: -
- Manufacturer: Texas Instruments
- detail: Converter Offline Flyback Topology 30kHz ~ 133kHz 8-SOIC
