FCPF400N80Z دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|

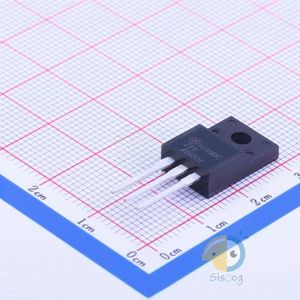

FCPF400N80Z
|
|
حجم فایل
|
70.016
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi FCPF400N80Z
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
35.7W
-
Total Gate Charge (Qg@Vgs):
56nC@10V
-
Drain Source Voltage (Vdss):
800V
-
Input Capacitance (Ciss@Vds):
2350pF@100V
-
Continuous Drain Current (Id):
11A
-
Gate Threshold Voltage (Vgs(th)@Id):
4.5V@1.1mA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
400mΩ@10V,5.5A
-
Package:
TO-220F
-
Manufacturer:
onsemi
-
Series:
SuperFET® II
-
Packaging:
Tube
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
800V
-
Current - Continuous Drain (Id) @ 25°C:
11A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
400mOhm @ 5.5A, 10V
-
Vgs(th) (Max) @ Id:
4.5V @ 1.1mA
-
Gate Charge (Qg) (Max) @ Vgs:
56nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
2350pF @ 100V
-
FET Feature:
-
-
Power Dissipation (Max):
35.7W (Tc)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
TO-220F
-
Package / Case:
TO-220-3 Full Pack
-
Base Part Number:
FCPF400
-
detail:
N-Channel 800V 11A (Tc) 35.7W (Tc) Through Hole TO-220F
