دیتاشیت SN74F244N

مشخصات دیتاشیت

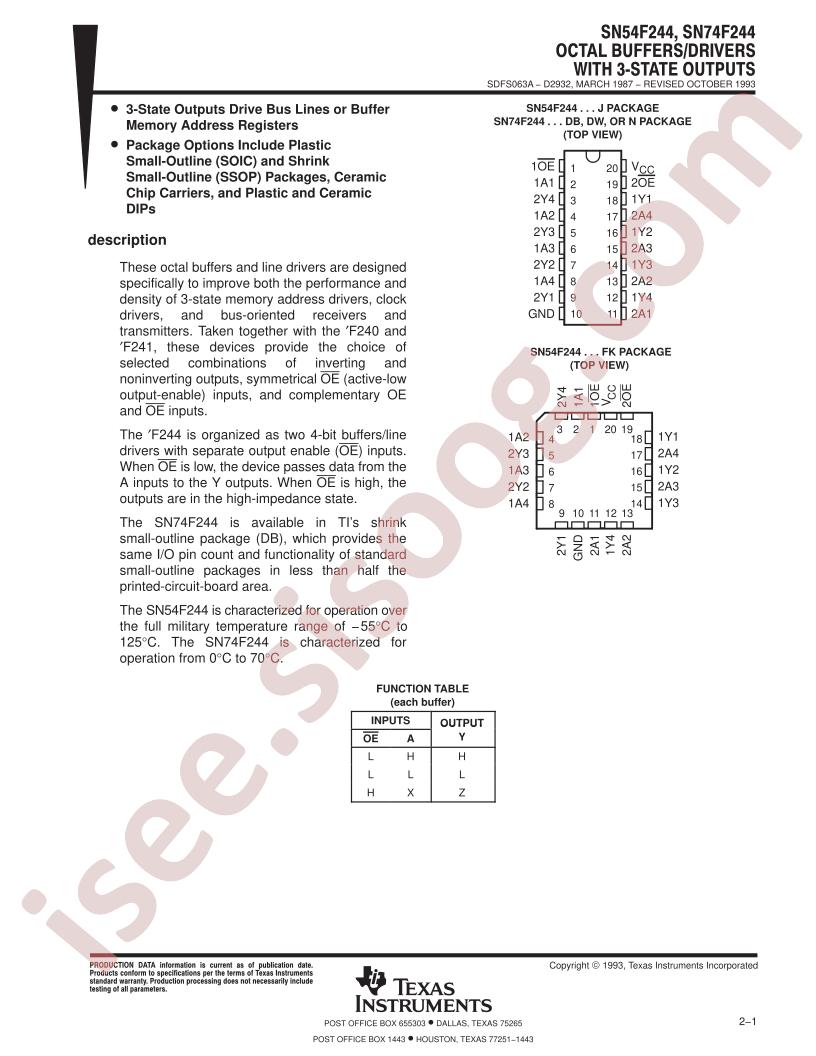

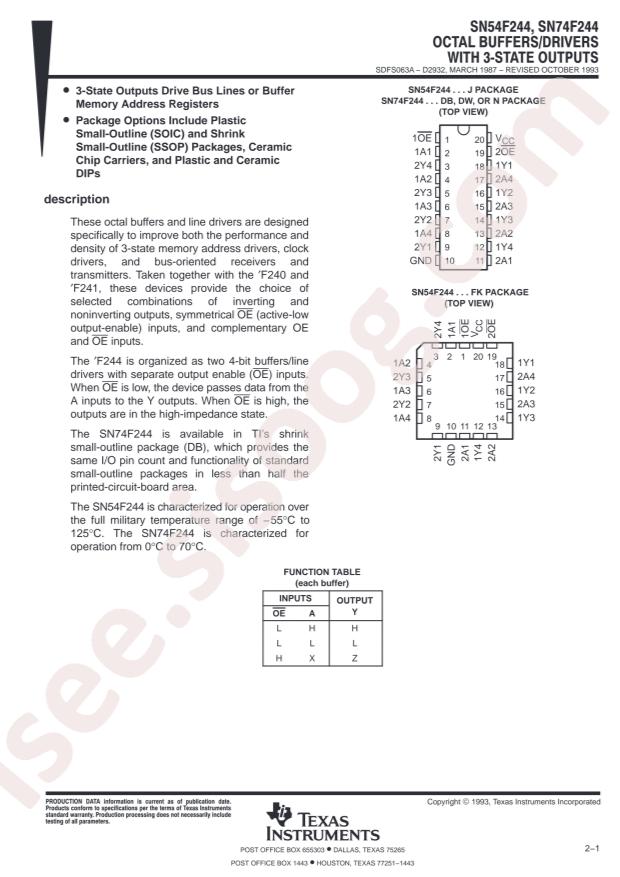

دانلود دیتاشیت SN54F244, SN74F244	SN54F244, SN74F244 Datasheet

RoHS: true
Category: Logic ICs/Buffer/Driver/Transceiver
Datasheet: Texas Instruments SN74F244N
Input type: -
output type: Tri-State
Logic Family: 74F
Sink Current: 64mA
Source Current: 15mA
Supply Voltage: 4.5V~5.5V
Number of Elements: 2
Operating Temperature: 0°C~+70°C
Number of Bits per Element: 4
Package: PDIP-20
Manufacturer: Texas Instruments
Voltage - Supply: 4.5V ~ 5.5V
Mounting Type: Through Hole
Packaging: Tube
Package / Case: 20-DIP (0.300", 7.62mm)
Part Status: Active
Current - Output High, Low: 15mA, 64mA
Series: 74F
Supplier Device Package: 20-PDIP
Logic Type: Buffer, Non-Inverting
Base Part Number: SN74F24
detail: Buffer, Non-Inverting 2 Element 4 Bit per Element 3-State Output 20-PDIP
