دیتاشیت MMBT3904-7-F
مشخصات دیتاشیت
| نام دیتاشیت |
MMBT3904-7-F
|
| حجم فایل |
86.012
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
7
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
Diodes Incorporated MMBT3904-7-F
-
Transistor Type:
NPN
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Collector Current (Ic):
200mA
-
Power Dissipation (Pd):
300mW
-
Transition Frequency (fT):
300MHz
-
DC Current Gain (hFE@Ic,Vce):
100@10mA,1V
-
Collector Cut-Off Current (Icbo):
50nA
-
Collector-Emitter Breakdown Voltage (Vceo):
40V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
300mV@5mA,50mA
-

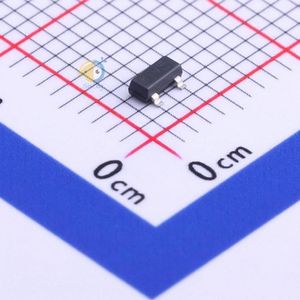

Package:
SOT-23
-
Manufacturer:
Diodes Incorporated
