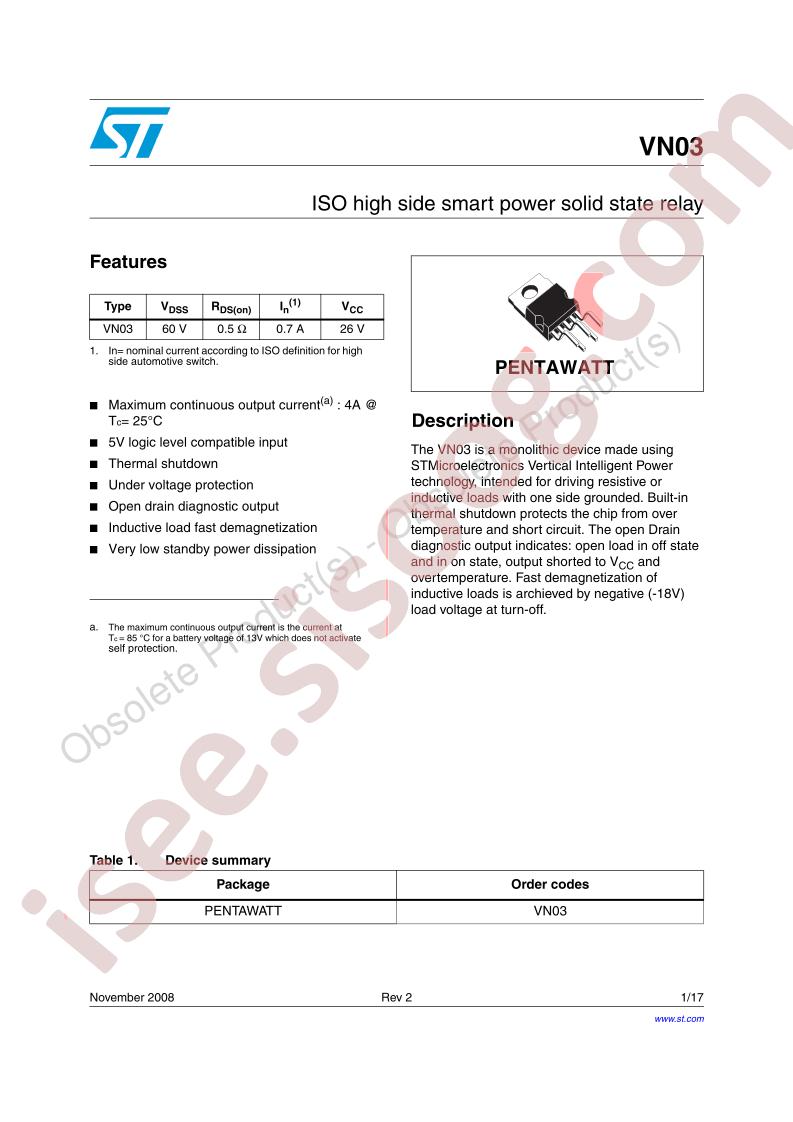

VN0300L Datasheet

VN03

Datasheet specifications

Datasheet's name VN03
File size 307.074 KB
File type pdf
Number of pages 17

Download Datasheet VN03

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Switch Type: General Purpose
  • Number of Outputs: 1
  • Ratio - Input:Output: 1:1
  • Output Configuration: High Side
  • Output Type: N-Channel
  • Interface: On/Off
  • Voltage - Load: 5.5V ~ 26V
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Current - Output (Max): 4A
  • Rds On (Typ): 500mOhm (Max)
  • Input Type: Non-Inverting
  • Features: Status Flag
  • Fault Protection: Open Load Detect, Over Temperature
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: 5-PENTAWATT
  • Package / Case: Pentawatt-5 (Vertical, Bent and Staggered Leads)
  • Base Part Number: VN03
  • detail: Power Switch/Driver 1:1 N-Channel 4A 5-PENTAWATT
