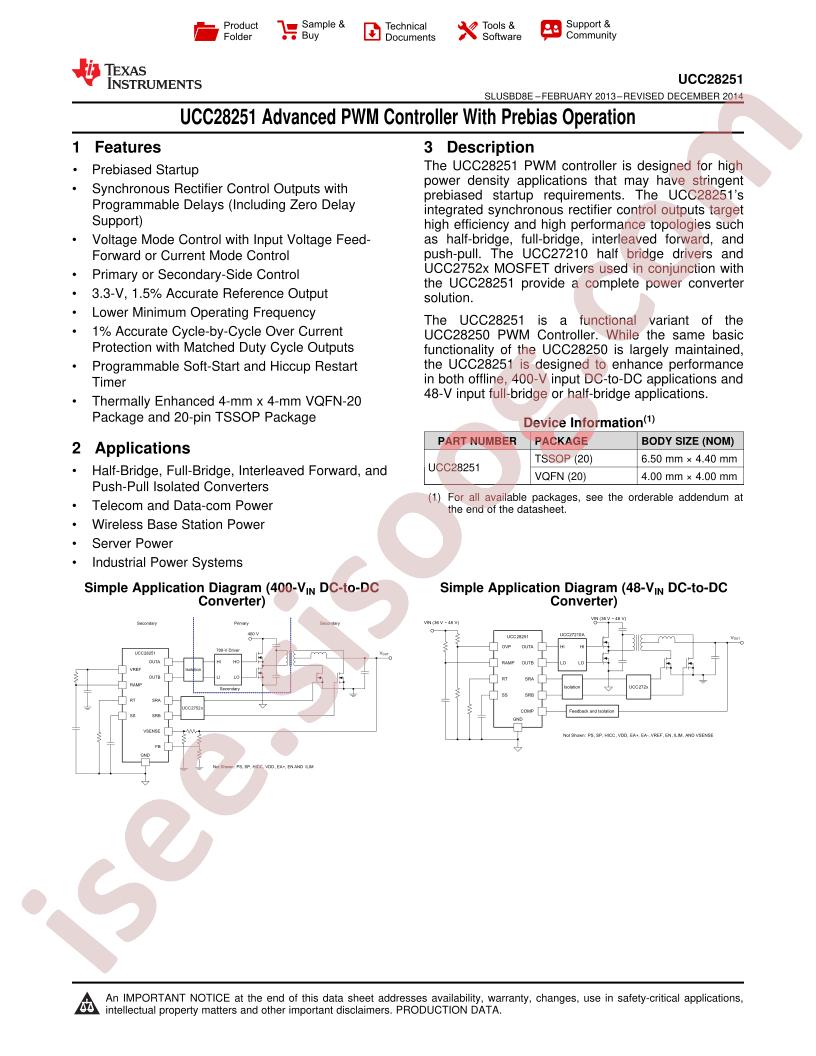

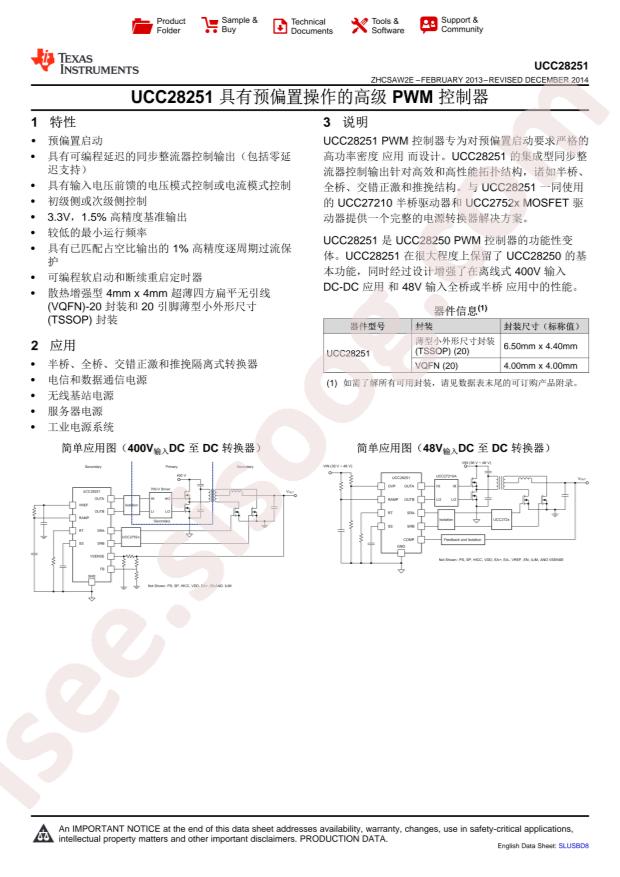

UCC28251PWR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
UCC28251PWR
|
|
حجم فایل
|
78.234
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
59
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/AC-DC Controllers & Regulators
-
Topology:
Full-Bridge;Half-Bridge;Push-pull
-
Datasheet:
Texas Instruments UCC28251PWR
-
Duty Cycle:
-
-
Supply Voltage:
4.7V~17V
-
Switching Frequency:
42kHz~945kHz
-
Operating Temperature:
-40°C~+125°C@(Tj)
-
Package:
TSSOP-20
-
Manufacturer:
Texas Instruments
-
Number of Outputs:
2
-
Voltage - Supply (Vcc/Vdd):
4.7V ~ 17V
-
Base Part Number:
UCC282
-
Package / Case:
20-TSSOP (0.173", 4.40mm Width)
-
Output Configuration:
Positive
-
Series:
-
-
Supplier Device Package:
20-TSSOP
-
Frequency - Switching:
42kHz ~ 945kHz
-
Part Status:
Active
-
Mounting Type:
Surface Mount
-
Control Features:
Current Limit, Enable, Frequency Control, Ramp, Soft Start
-
Clock Sync:
No
-
Serial Interfaces:
-
-
Function:
Step-Up/Step-Down
-
Duty Cycle (Max):
-
-
Packaging:
Cut Tape (CT)
-
Synchronous Rectifier:
Yes
-
Output Type:
PWM Signal
-
Output Phases:
1
-
detail:
Full-Bridge, Half-Bridge, Push-Pull Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC 20-TSSOP
