دیتاشیت ULN2803APG.

مشخصات دیتاشیت

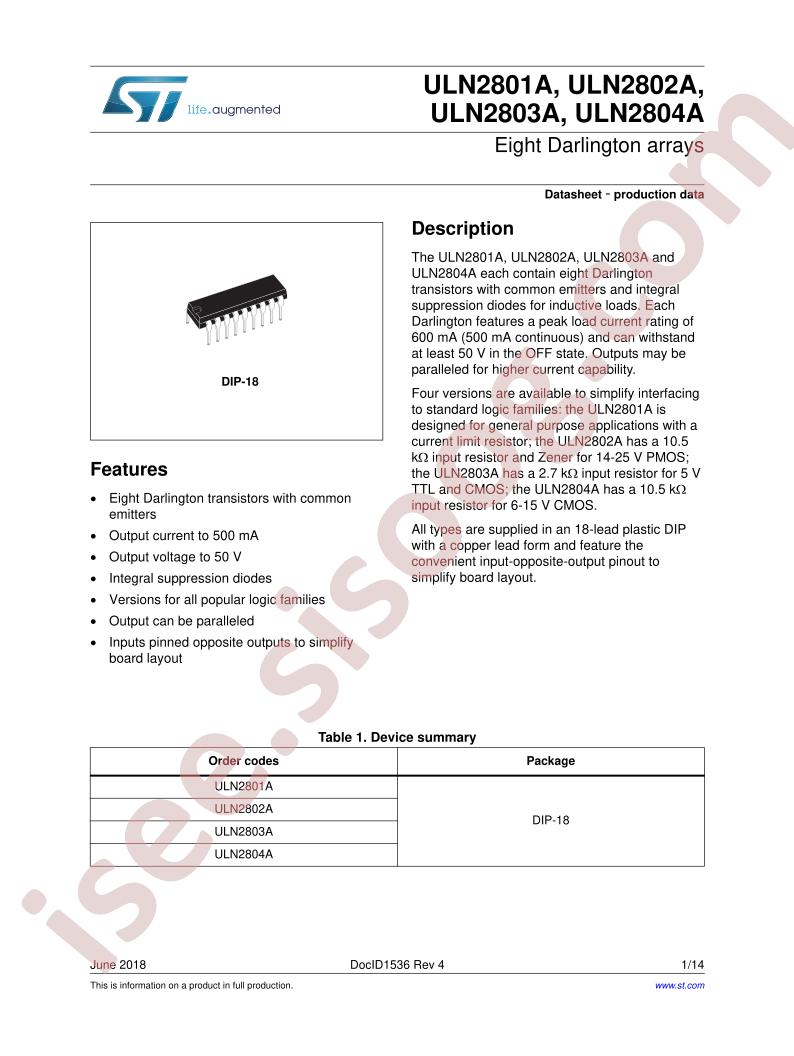

دانلود دیتاشیت ULN280xA Datasheet	ULN280xA Datasheet Datasheet

Manufacturer: STMicroelectronics
Series: -
Packaging: Tube
Part Status: Active
Transistor Type: 8 NPN Darlington
Current - Collector (Ic) (Max): 500mA
Voltage - Collector Emitter Breakdown (Max): 50V
Vce Saturation (Max) @ Ib, Ic: 1.6V @ 500µA, 350mA
Current - Collector Cutoff (Max): -
DC Current Gain (hFE) (Min) @ Ic, Vce: 1000 @ 350mA, 2V
Power - Max: 2.25W
Frequency - Transition: -
Operating Temperature: -20°C ~ 150°C (TJ)
Mounting Type: Through Hole
Package / Case: 18-DIP (0.300", 7.62mm)
Supplier Device Package: 18-DIP
Base Part Number: ULN2803
detail: Bipolar (BJT) Transistor Array 8 NPN Darlington 50V 500mA 2.25W Through Hole 18-DIP
