دیتاشیت MCP1801T-3302I/OT
مشخصات دیتاشیت
| نام دیتاشیت | MCP1801 |
|---|---|
| حجم فایل | 367.591 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 28 |
دانلود دیتاشیت MCP1801 |

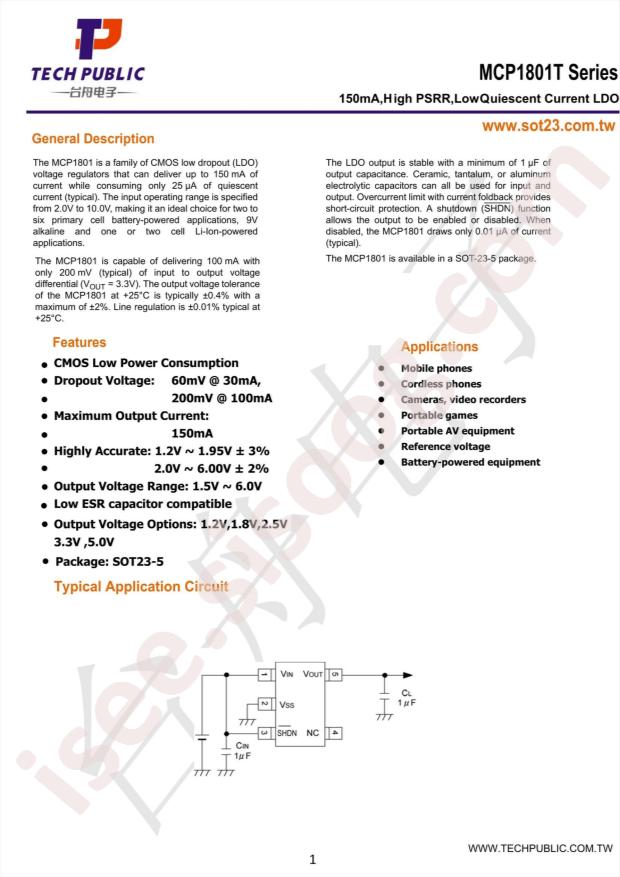

MCP1801 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: TECH PUBLIC MCP1801T-3302I/OT
- Package: SOT-23-5
- Manufacturer: TECH PUBLIC
- Output Type: Fixed
- Output Current: 150mA
- Output Voltage: 3.3V
- Dropout Voltage: 250mV@(100mA)
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 10V
- Operating Temperature: -40°C~+85°C
- Quiescent Current (Ground Current): 50uA
- Power Supply Rejection Ratio (PSRR): 70dB@(10kHz)
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Positive
- Number of Regulators: 1
- Voltage - Input (Max): 10V
- Voltage - Output (Min/Fixed): 3.3V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.25V @ 100mA
- Current - Output: 150mA
- Current - Quiescent (Iq): 50µA
- PSRR: 70dB (10kHz)
- Control Features: Enable
- Protection Features: Over Current
- Mounting Type: Surface Mount
- Package / Case: SC-74A, SOT-753
- Supplier Device Package: SOT-23-5
- Base Part Number: MCP1801
- detail: Linear Voltage Regulator IC 1 Output 150mA SOT-23-5
