دیتاشیت CD74HCT4020E

CD54,74HC(T)4020

مشخصات دیتاشیت

نام دیتاشیت CD54,74HC(T)4020
حجم فایل 498.136 کیلوبایت
نوع فایل pdf
تعداد صفحات 16

دانلود دیتاشیت CD54,74HC(T)4020

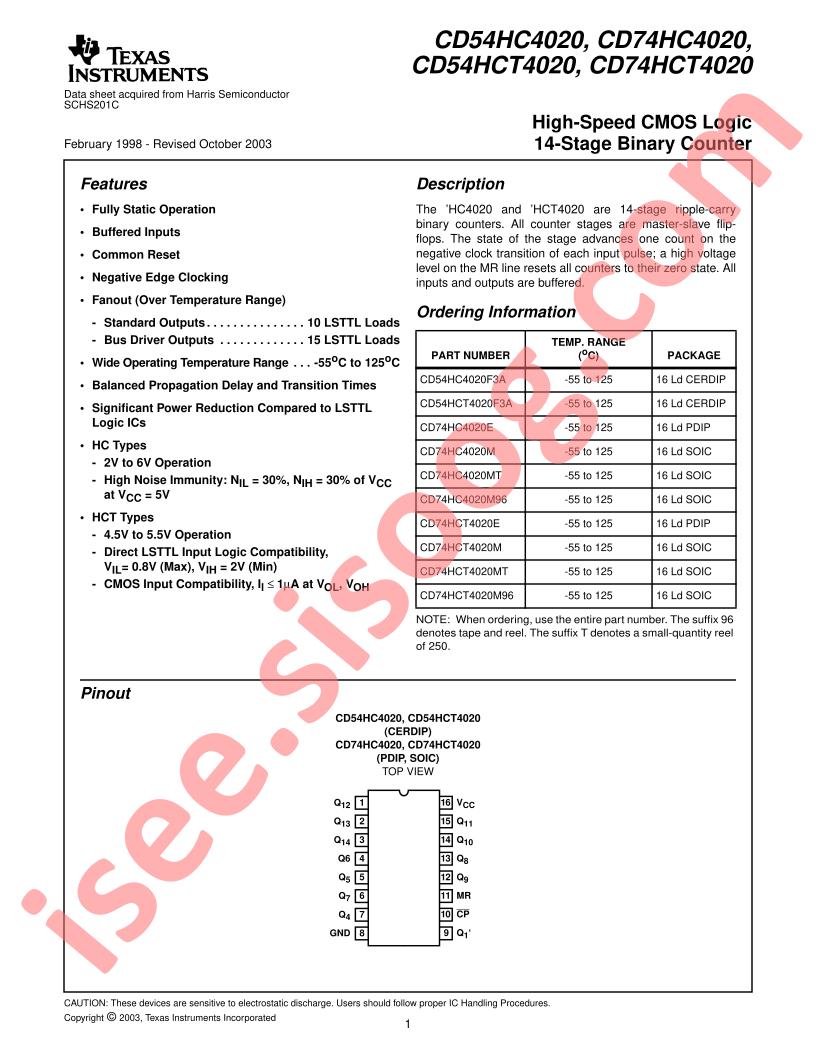

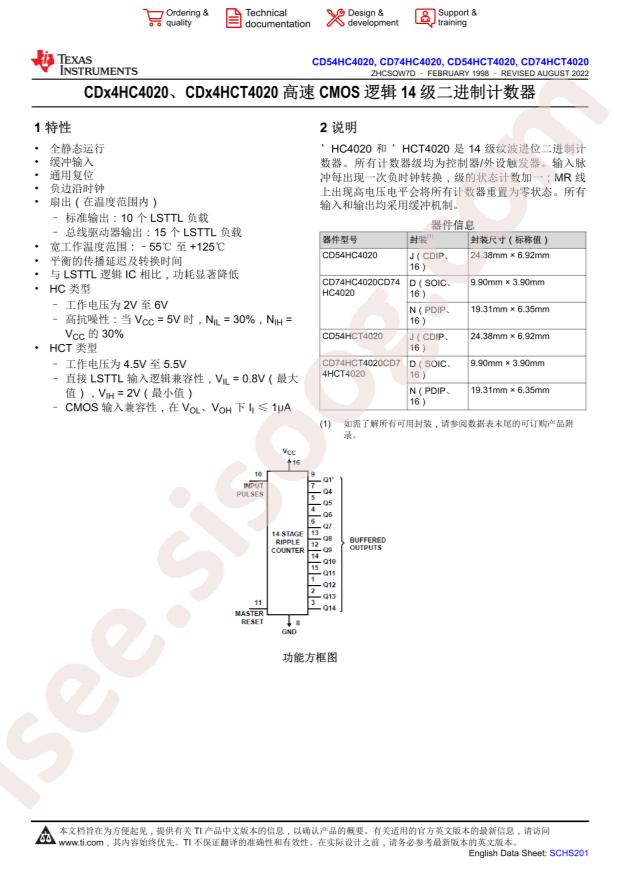

CD54,74HC(T)4020 Datasheet

مشخصات

  • RoHS: true
  • Category: Logic ICs/Counters / Dividers
  • Datasheet: Texas Instruments CD74HCT4020E
  • Direction: 向上计数器
  • Count Rate: 25MHz
  • Logic Type: Binary Counter
  • Reset Style: Asynchronous
  • Timing mode: -
  • Trigger Type: Negative Edge
  • Supply Voltage: 4.5V~5.5V
  • Number of Elements: 1
  • Operating Temperature: -55°C~+125°C
  • Number of Bits per Element: 14
  • Package: PDIP-16
  • Manufacturer: Texas Instruments
  • Timing: -
  • Reset: Asynchronous
  • Voltage - Supply: 4.5V ~ 5.5V
  • Part Status: Active
  • Mounting Type: Through Hole
  • Packaging: Tube
  • Package / Case: 16-DIP (0.300", 7.62mm)
  • Series: 74HCT
  • Supplier Device Package: 16-PDIP
  • Base Part Number: 74HCT4020
  • detail: Counter IC Binary Counter 1 Element 14 Bit Negative Edge 16-PDIP
