دیتاشیت JN5174/001Y

مشخصات دیتاشیت

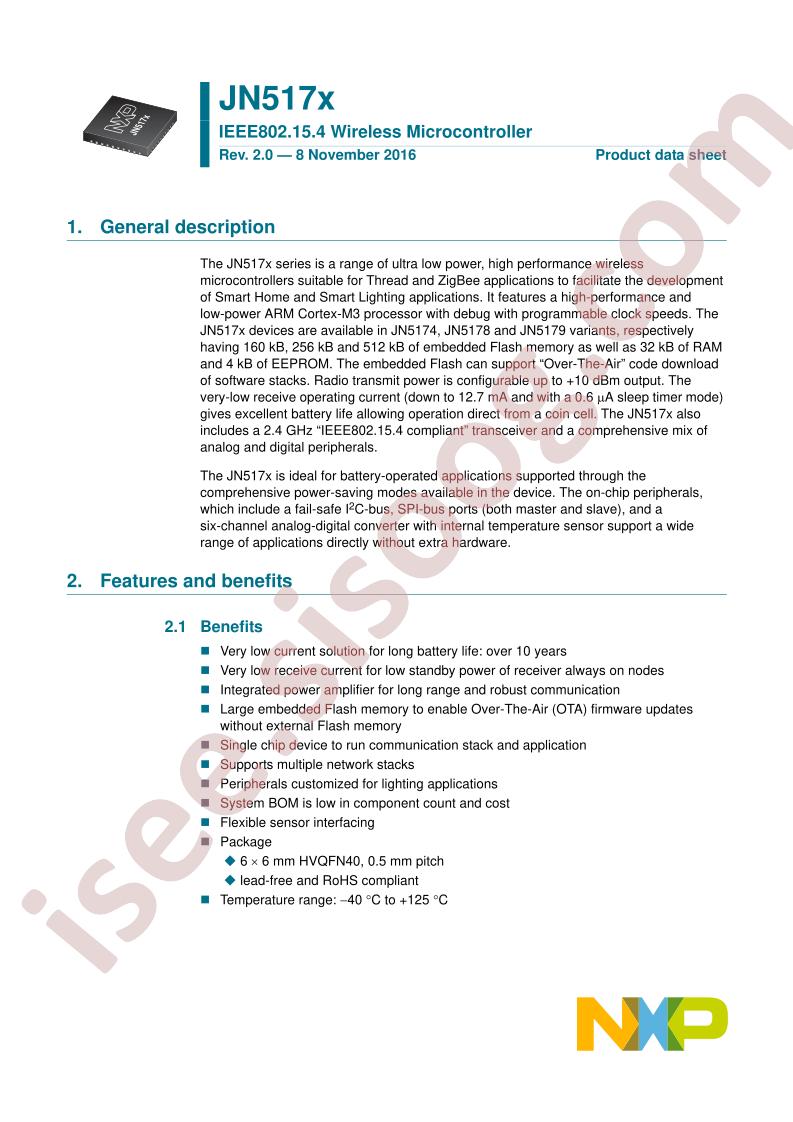

دانلود دیتاشیت JN517x Datasheet	JN517x Datasheet Datasheet

Manufacturer: NXP USA Inc.
Series: JN517X
Packaging: Tape & Reel (TR)
Part Status: Obsolete
Type: TxRx + MCU
RF Family/Standard: 802.15.4
Protocol: Zigbee®
Modulation: -
Frequency: 2.4GHz ~ 2.485GHz
Data Rate (Max): -
Power - Output: 10dBm
Sensitivity: -96.5dBm
Memory Size: 160kB Flash, 4kB EEPROM, 32kB RAM
Serial Interfaces: I²C, PWM, SPI, UART
GPIO: 1
Voltage - Supply: 2V ~ 3.6V
Current - Receiving: 12.7mA ~ 14.8mA
Current - Transmitting: 14mA ~ 22.5mA
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: 40-VFQFN Exposed Pad
Supplier Device Package: 40-HVQFN (6x6)
Base Part Number: JN517
detail: IC RF TxRx + MCU 802.15.4 Zigbee® 2.4GHz ~ 2.485GHz 40-VFQFN Exposed Pad
