MAX5702BAUB+T دیتاشیت

MAX5702BAUB+T

مشخصات دیتاشیت

نام دیتاشیت MAX5702BAUB+T
حجم فایل 102.514 کیلوبایت
نوع فایل pdf
تعداد صفحات 26

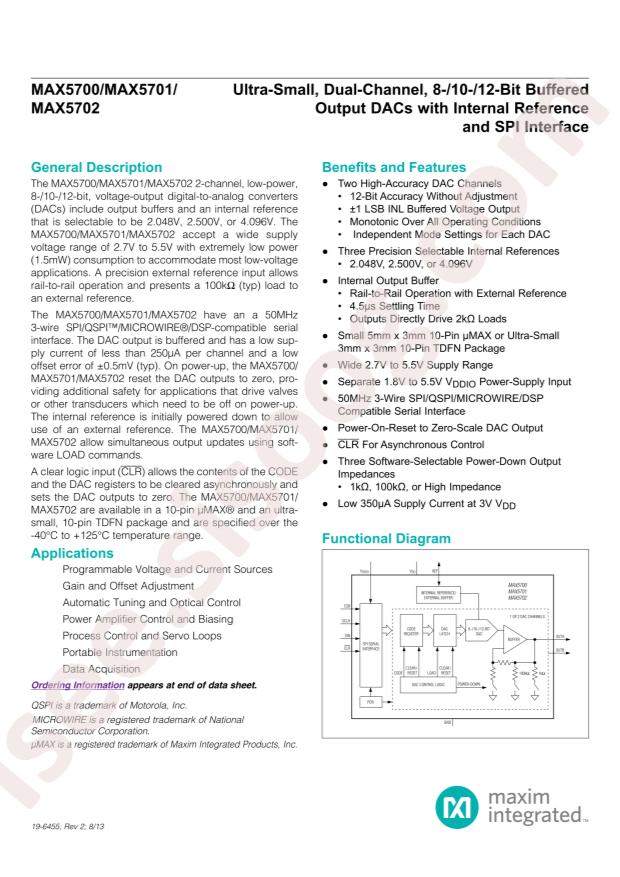

مشاهده دیتاشیت MAX5702BAUB+T

دانلود دیتاشیت

سایر مستندات

Part Numbering System 7 pages

MAX5700-02 26 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Analog Devices Inc./Maxim Integrated MAX5702BAUB+T
  • Interface: SPI;DSP
  • resolution: 12
  • output type: Voltage-缓冲
  • built-up time: 4.5us
  • Supply Voltage: 2.7V~5.5V
  • Integral nonlinearity: ±0.5LSB;±0.2LSB
  • Operating Temperature: -40°C~+125°C
  • Package: UMAX-10
  • Manufacturer: Analog Devices Inc./Maxim Integrated
  • Mounting Type: Surface Mount
  • Number of D/A Converters: 2
  • Data Interface: SPI, DSP
  • Voltage - Supply, Digital: 2.7V ~ 5.5V
  • Reference Type: External, Internal
  • Number of Bits: 12
  • Part Status: Active
  • INL/DNL (LSB): ±0.5, ±0.2
  • Differential Output: No
  • Series: -
  • Voltage - Supply, Analog: 2.7V ~ 5.5V
  • Base Part Number: MAX570
  • Supplier Device Package: 10-uMAX
  • Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
  • Settling Time: 4.5µs (Typ)
  • Packaging: Tube
  • Architecture: -
  • detail: 12 Bit Digital to Analog Converter 2 10-uMAX
