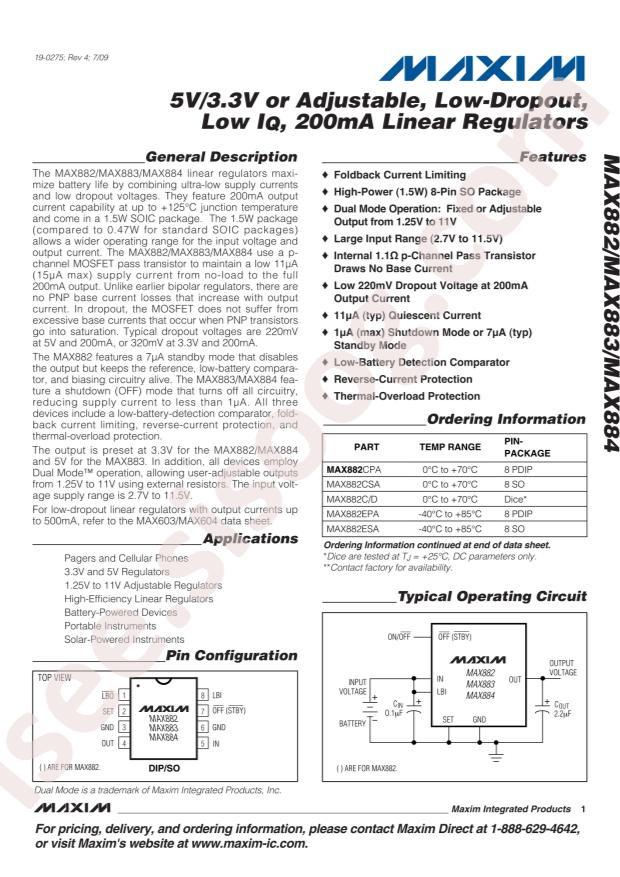

MAX882ESA+T Datasheet
Datasheet specifications
| Datasheet's name | MAX882ESA+T |
|---|---|
| File size | 113.091 KB |
| File type | |
| Number of pages | 17 |
Download Datasheet MAX882ESA+T |
Download Datasheet |
|---|
Other documentations
Part Numbering System 7 pages
MAX882-884 17 pages
Technical specifications
- RoHS: true
- Feature: Overcurrent Protection;Thermal Protection;Reverse connection protection
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Analog Devices Inc./Maxim Integrated MAX882ESA+T
- Output Type: -
- Output Current: 200mA
- Output Voltage: 1.25V~11V
- Dropout Voltage: 0.64V@(200mA)
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 11.5V
- Operating Temperature: -40°C~+85°C
- Quiescent Current (Ground Current): 15uA
- Package: SOP-8
- Manufacturer: Analog Devices Inc./Maxim Integrated
- Voltage Dropout (Max): 0.64V @ 200mA
- PSRR: -
- Output Configuration: Positive
- Current - Output: 200mA
- Voltage - Output (Max): 11V
- Supplier Device Package: 8-SOIC
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Packaging: Tube
- Voltage - Input (Max): 11.5V
- Current - Supply (Max): 25µA
- Protection Features: Over Current, Over Temperature, Reverse Polarity
- Part Status: Active
- Mounting Type: Surface Mount
- Number of Regulators: 1
- Series: -
- Voltage - Output (Min/Fixed): 1.25V (3.3V)
- Current - Quiescent (Iq): 15µA
- Control Features: Enable, Low Battery Detection
- Base Part Number: MAX882
- detail: Linear Voltage Regulator IC 1 Output 200mA 8-SOIC
