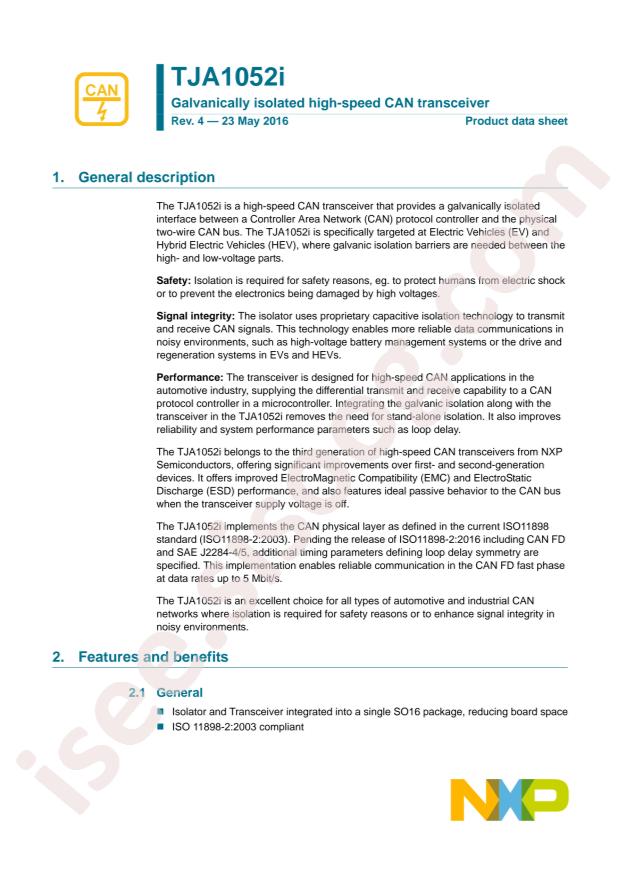

دیتاشیت TJA1052IT/5Y
مشخصات دیتاشیت
| نام دیتاشیت |
TJA1052I
|
| حجم فایل |
278.236
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
27
|
مشخصات
-
RoHS:
true
-
Type:
Transceiver
-
Category:
Communication Interface Chip/UART/485/232/CAN ICs
-
Data Rate:
5Mbps
-
Datasheet:
NXP Semicon TJA1052IT/5Y
-
Supply Voltage:
3V~5.25V
-
Package:
SOP-16-300mil
-
Manufacturer:
NXP Semicon
-
Series:
Automotive, AEC-Q100
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Technology:
Capacitive Coupling
-
Isolated Power:
No
-
Number of Channels:
1
-
Inputs - Side 1/Side 2:
1/1
-
Channel Type:
Unidirectional
-
Voltage - Isolation:
5000Vrms
-
Common Mode Transient Immunity (Min):
20kV/µs
-
Propagation Delay tpLH / tpHL (Max):
-
-
Pulse Width Distortion (Max):
-
-
Rise / Fall Time (Typ):
-
-
Voltage - Supply:
3V ~ 5.25V
-
Operating Temperature:
-40°C ~ 125°C
-
Mounting Type:
Surface Mount
-
Package / Case:
16-SOIC (0.295", 7.50mm Width)
-
Supplier Device Package:
16-SO
-
Base Part Number:
TJA105
-
detail:
CAN Digital Isolator 5000Vrms 1 Channel 5Mbps 20kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
