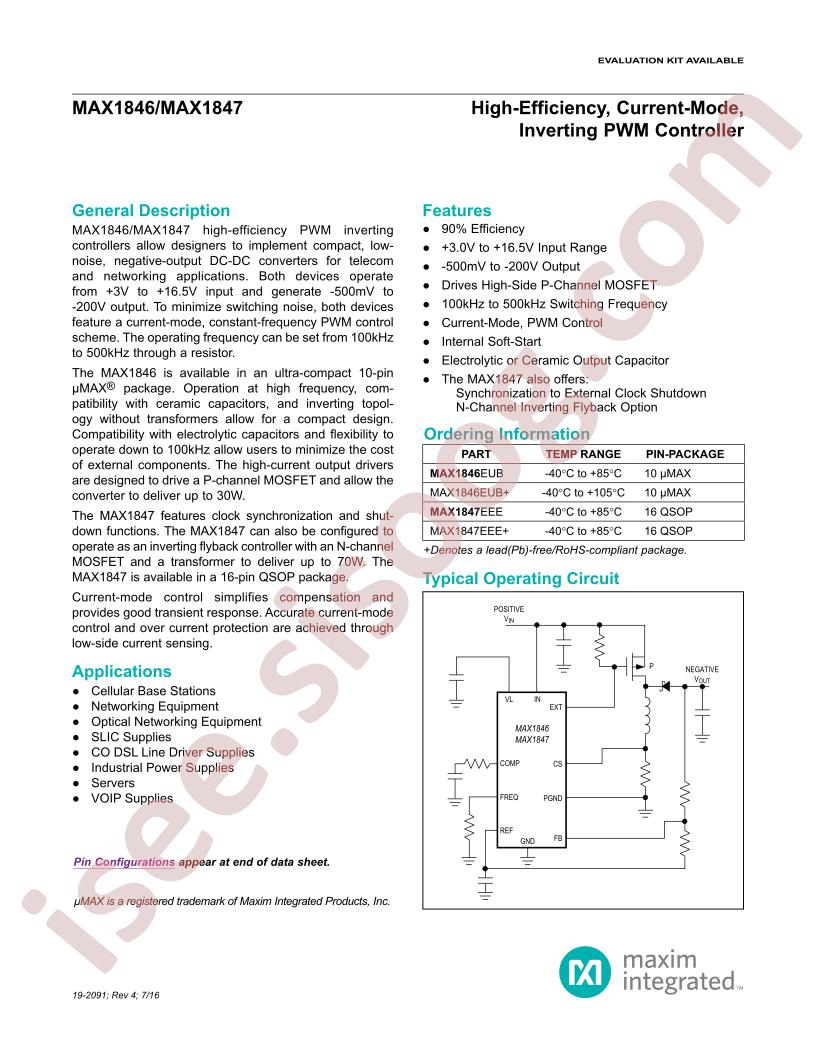

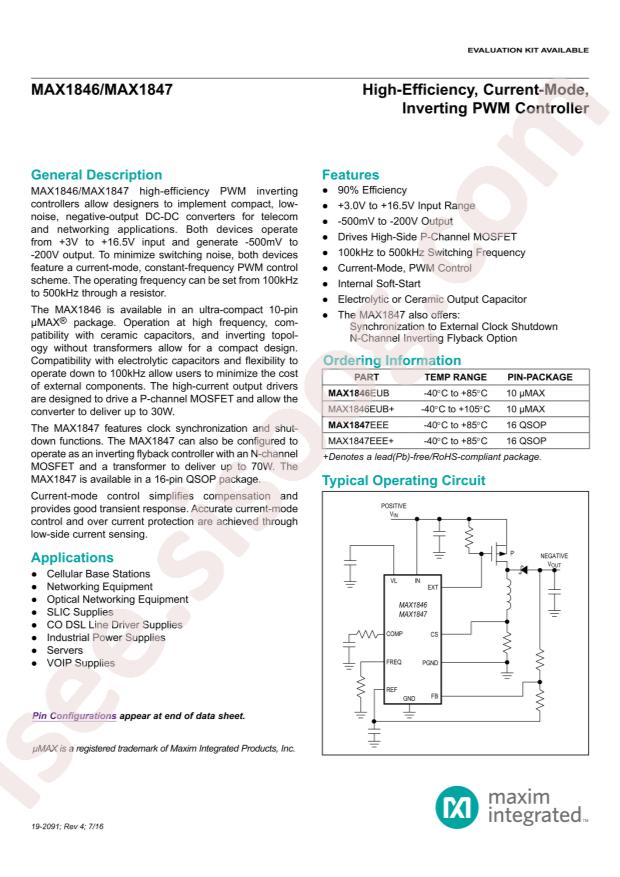

MAX1846EUB+T دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MAX1846EUB+T |
|---|---|
| حجم فایل | 94.32 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 20 |
دانلود دیتاشیت MAX1846EUB+T |
دانلود دیتاشیت |
|---|
سایر مستندات
Part Numbering System 7 pages
EE-Sim Design, Simulation Environment Guide 55 pages
MAX1846,47 20 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/DC-DC Controllers
- Function: Buck-boost type
- Topology: Flyback
- Datasheet: Analog Devices Inc./Maxim Integrated MAX1846EUB+T
- Input Voltage: 3V~16.5V
- Duty Cycle (Max): 96%
- Number of Outputs: 1
- Switching Frequency: 500kHz
- Operating Temperature: -40°C~+85°C@(TA)
- Synchronous Rectification: NO
- Package: UMAX-10
- Manufacturer: Analog Devices Inc./Maxim Integrated
- Part Status: Active
- Output Configuration: Negative
- Synchronous Rectifier: No
- Serial Interfaces: -
- Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
- Clock Sync: Yes
- Output Phases: 1
- Packaging: Tube
- Voltage - Supply (Vcc/Vdd): 3V ~ 16.5V
- Frequency - Switching: 100kHz ~ 500kHz
- Mounting Type: Surface Mount
- Output Type: Transistor Driver
- Series: -
- Base Part Number: MAX1846
- Control Features: Enable, Frequency Control
- Supplier Device Package: 10-uMAX
- detail: Flyback Regulator Negative Output Step-Up/Step-Down DC-DC Controller IC 10-uMAX
