دیتاشیت MC9S12XEP100CAG
مشخصات دیتاشیت
| نام دیتاشیت | MC9S12XE Family Brief |
|---|---|
| حجم فایل | 3932.132 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 15 |
دانلود دیتاشیت MC9S12XE Family Brief |

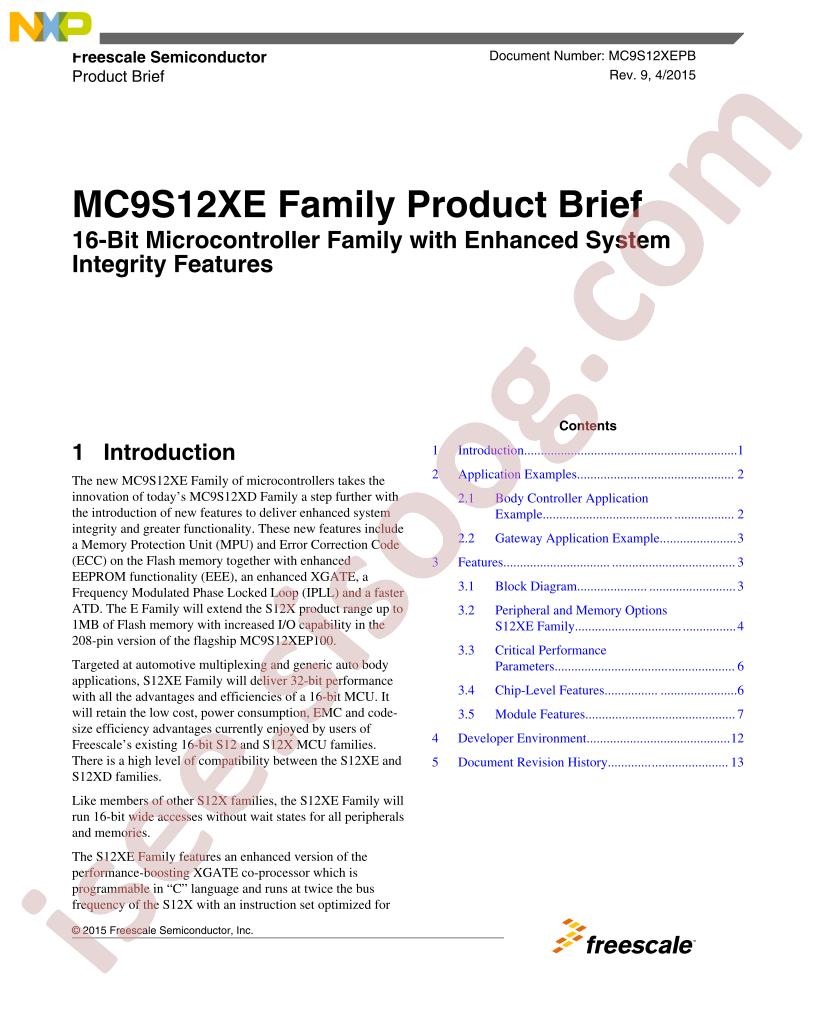

MC9S12XE Family Brief Datasheet |
|---|
مشخصات
- RoHS: true
- CPU Core: Other series
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- Watchdog: Yes
- ADC (Bit): 12bit
- Datasheet: NXP Semicon MC9S12XEP100CAG
- CPU Maximum Speed: 50MHz
- GPIO Ports Number: 119
- Low-Voltage Detect: Yes
- Direct Memory Access: -
- Program Storage Size: 1MB
- Universal Serial Bus: -
- Operating Voltage Range: 1.72V~5.5V
- Infrared Data Association: Yes
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: LQFP-144(20x20)
- Manufacturer: NXP Semicon
- Series: HCS12X
- Packaging: Tray
- Part Status: Active
- Core Processor: HCS12X
- Core Size: 16-Bit
- Speed: 50MHz
- Connectivity: CANbus, EBI/EMI, I²C, IrDA, SCI, SPI
- Peripherals: LVD, POR, PWM, WDT
- Number of I/O: 119
- Program Memory Size: 1MB (1M x 8)
- Program Memory Type: FLASH
- EEPROM Size: 4K x 8
- RAM Size: 64K x 8
- Voltage - Supply (Vcc/Vdd): 1.72V ~ 5.5V
- Data Converters: A/D 24x12b
- Oscillator Type: External
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 144-LQFP
- Supplier Device Package: 144-LQFP (20x20)
- Base Part Number: MC9S1
- detail: HCS12X HCS12X Microcontroller IC 16-Bit 50MHz 1MB (1M x 8) FLASH 144-LQFP (20x20)
