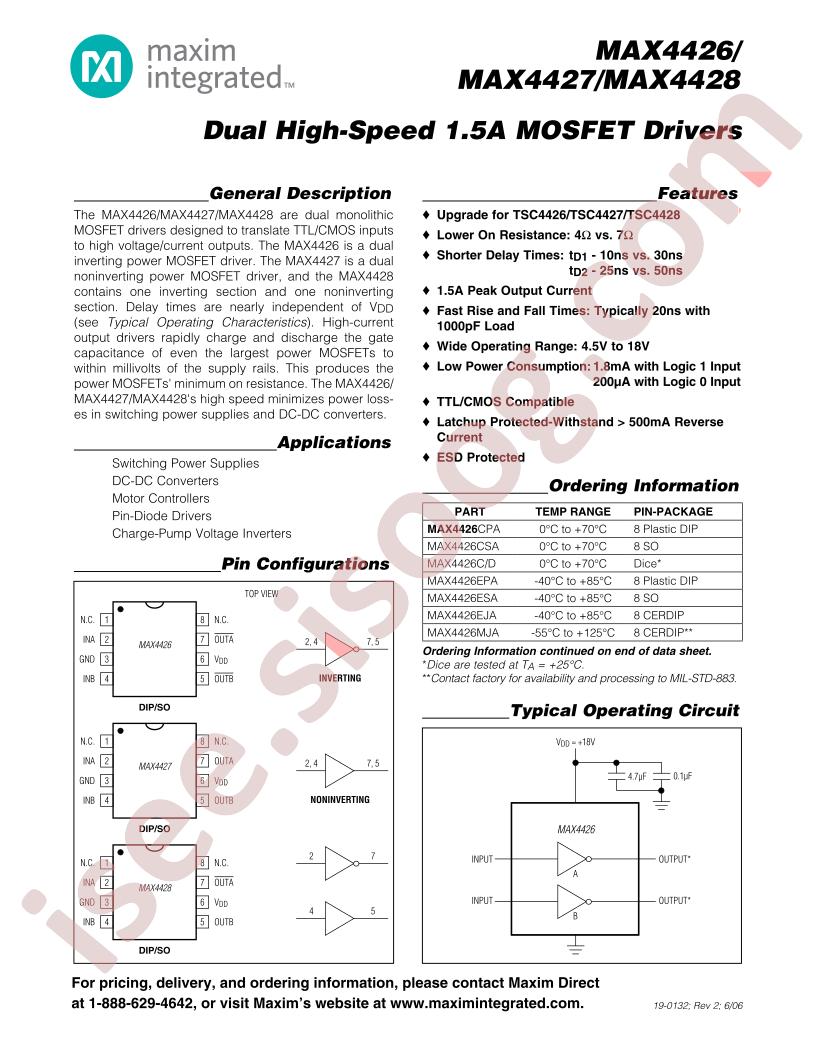

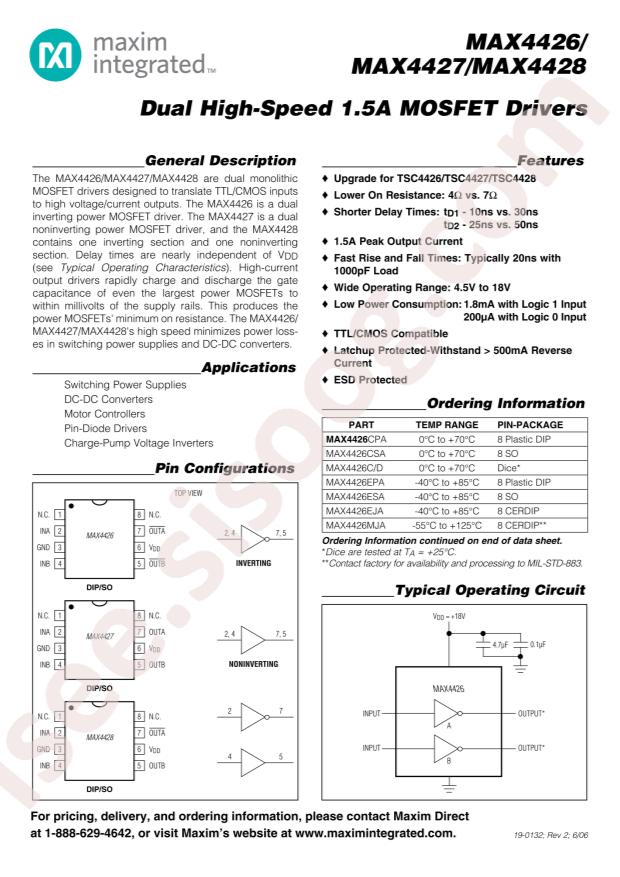

- دیتاشیت MAX4427ESA+T
MAX4427ESA+T دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MAX4427ESA+T |
|---|---|
| حجم فایل | 101.879 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 7 |
دانلود دیتاشیت MAX4427ESA+T |
دانلود دیتاشیت |
|---|
سایر مستندات
Part Numbering System 7 pages
MAX4426-28 7 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Gate Drive ICs
- Datasheet: Analog Devices Inc./Maxim Integrated MAX4427ESA+T
- Fall Time: 20ns
- Load Type: MOSFET
- Rise Time: 20ns
- Supply Voltage: 4.5V~18V
- Number of Drivers: 2
- Driven Configuration: Low Side
- Operating Temperature: -40°C~+85°C@(Ta)
- Peak Output Current(sink): 1.5A
- Peak Output Current(source): 1.5A
- Package: SO-8
- Manufacturer: Analog Devices Inc./Maxim Integrated
- Current - Peak Output (Source, Sink): 1.5A, 1.5A
- Supplier Device Package: 8-SOIC
- Base Part Number: MAX4427
- Input Type: Non-Inverting
- Gate Type: N-Channel, P-Channel MOSFET
- Part Status: Active
- Channel Type: Independent
- Logic Voltage - VIL, VIH: 0.8V, 2.4V
- Series: -
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Packaging: Tube
- Voltage - Supply: 4.5V ~ 18V
- Rise / Fall Time (Typ): 20ns, 20ns
- detail: Low-Side Gate Driver IC Non-Inverting 8-SOIC
