LTC3549EDCB#TRMPBF 数据手册
其他文档
LTpowerCAD II User Guide 60 pages

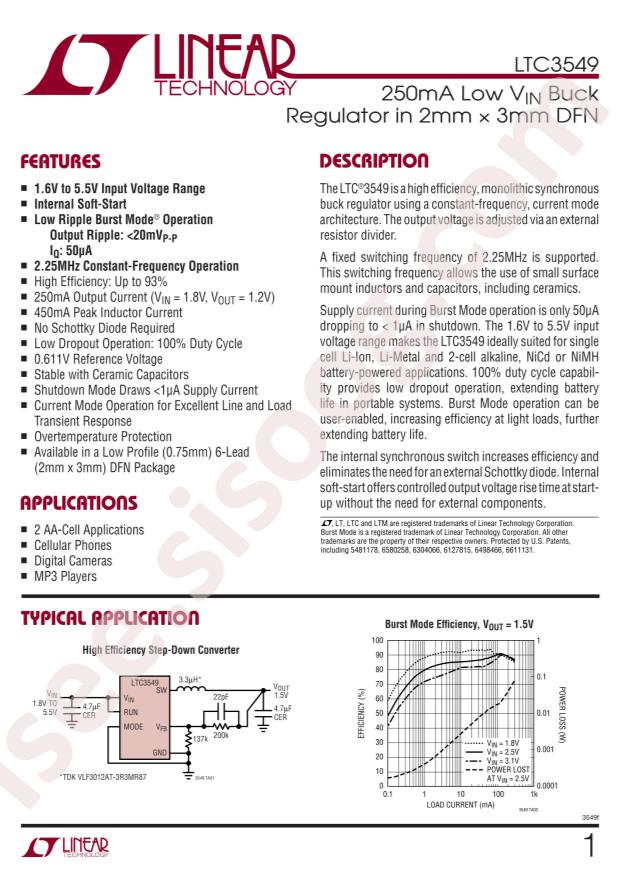

LTC3549 Datasheet 16 pages
技术规格
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Datasheet: Analog Devices LTC3549EDCB#TRMPBF
- Output Type: Adjustable
- Input Voltage: 1.6V~5.5V
- Output Voltage: 0.611V~5.5V
- Number of Outputs: 1
- Switching Frequency: 2.25MHz
- Output Current (Max): 250mA
- Operating Temperature: -40°C~+85°C@(TA)
- Synchronous Rectification: Yes
- Package: DFN-6(2x3)
- Manufacturer: Analog Devices
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Positive
- Voltage - Input (Min): 1.6V
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 0.611V
- Voltage - Output (Max): 5.5V
- Current - Output: 250mA
- Frequency - Switching: 2.25MHz
- Synchronous Rectifier: Yes
- Mounting Type: Surface Mount
- Package / Case: 6-WFDFN Exposed Pad
- Supplier Device Package: 6-DFN (2x3)
- Base Part Number: LTC3549
- detail: Buck Switching Regulator IC Positive Adjustable 0.611V 1 Output 250mA 6-WFDFN Exposed Pad
