دیتاشیت LT5560EDD#TRPBF
مشخصات دیتاشیت
| نام دیتاشیت | LT5560 Datasheet |
|---|---|
| حجم فایل | 460.778 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 28 |

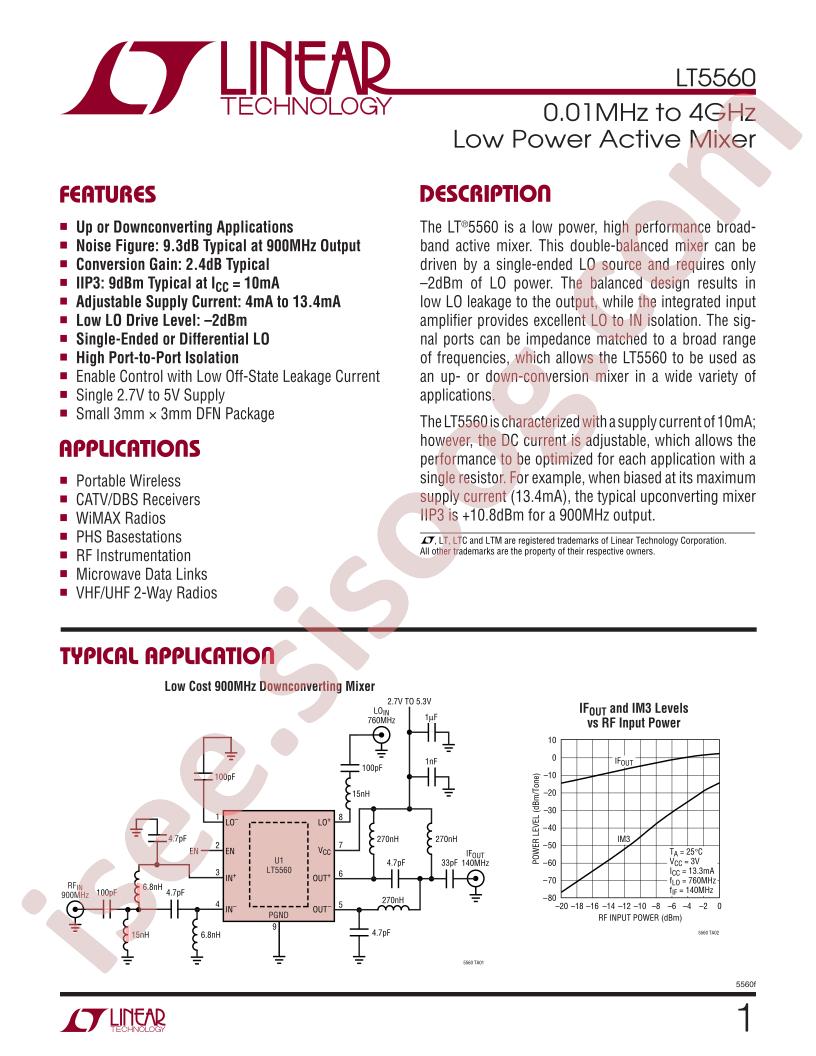

دانلود دیتاشیت LT5560 Datasheet |
LT5560 Datasheet Datasheet |
|---|
مشخصات
- Gain: 2.4dB
- RoHS: true
- Category: Radio Frequency Chip/Antenna/RF Mixers
- Datasheet: Analog Devices LT5560EDD#TRPBF
- Applications: CATV,DBS,PHS,UHF,VHF
- Noise Figure: 9.3dB
- Supply Current: 12mA
- Supply Voltage: 2.7V~5.3V
- Frequency Range: 10kHz~4GHz
- Package: DFN-8(3x3)
- Manufacturer: Analog Devices
- Series: LT5560
- Packaging: Cut Tape (CT)
- Part Status: Active
- RF Type: CATV, DBS, PHS, UHF, VHF
- Frequency: 10kHz ~ 4GHz
- Number of Mixers: 1
- Secondary Attributes: Up/Down Converter
- Current - Supply: 12mA
- Voltage - Supply: 2.7V ~ 5.3V
- Mounting Type: Surface Mount
- Package / Case: 8-WFDFN Exposed Pad
- Supplier Device Package: 8-DFN (3x3)
- Base Part Number: LT5560
- detail: RF Mixer IC CATV, DBS, PHS, UHF, VHF Up/Down Converter 10kHz ~ 4GHz 8-DFN (3x3)
