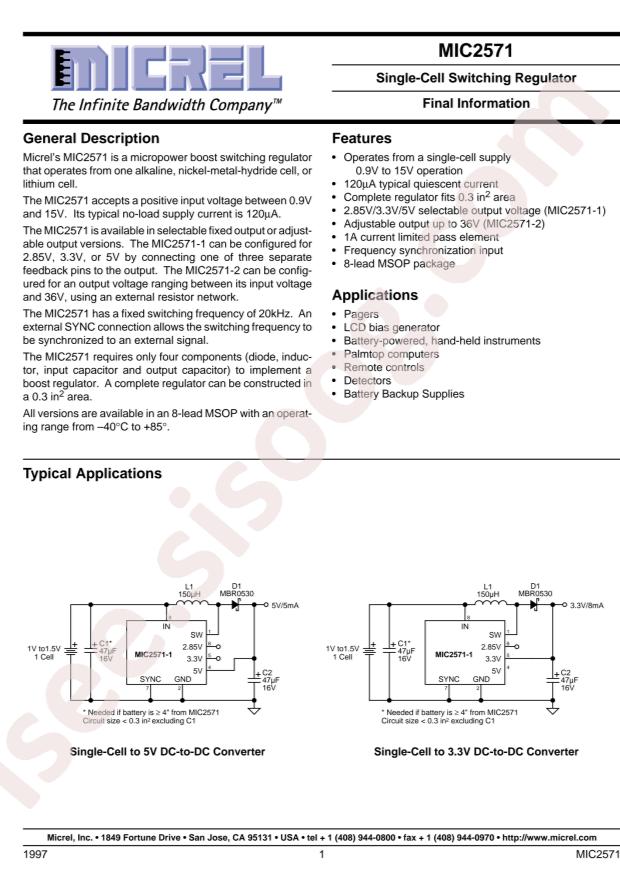

MIC2571-1YMM-TR Datasheet
Datasheet specifications
| Datasheet's name | MIC2571-1YMM-TR |
|---|---|
| File size | 93.015 KB |
| File type | |
| Number of pages | 12 |
Download Datasheet MIC2571-1YMM-TR |
Download Datasheet |
|---|
Other documentations
MIC2571 12 pages
Technical specifications
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: boost converterType
- Topology: Boost
- Datasheet: Microchip Tech MIC2571-1YMM-TR
- Output Type: Adjustable
- Input Voltage: 0.9V~15V
- Output Voltage: 2.85V;3.3V;5V
- Number of Outputs: 1
- Switching Frequency: 20kHz
- Output Current (Max): 1A
- Operating Temperature: -40°C~+85°C@(TA)
- Synchronous Rectification: NO
- Package: MSOP-8
- Manufacturer: Microchip Tech
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Output Configuration: Positive
- Voltage - Input (Min): 0.9V
- Voltage - Input (Max): 15V
- Voltage - Output (Min/Fixed): 2.85V, 3.3V, 5V
- Voltage - Output (Max): -
- Current - Output: 1A (Switch)
- Frequency - Switching: 20kHz
- Synchronous Rectifier: No
- Mounting Type: Surface Mount
- Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Supplier Device Package: 8-MSOP
- Base Part Number: MIC2571
- detail: Boost Switching Regulator IC Positive Programmable 2.85V, 3.3V, 5V 1 Output 1A (Switch) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
