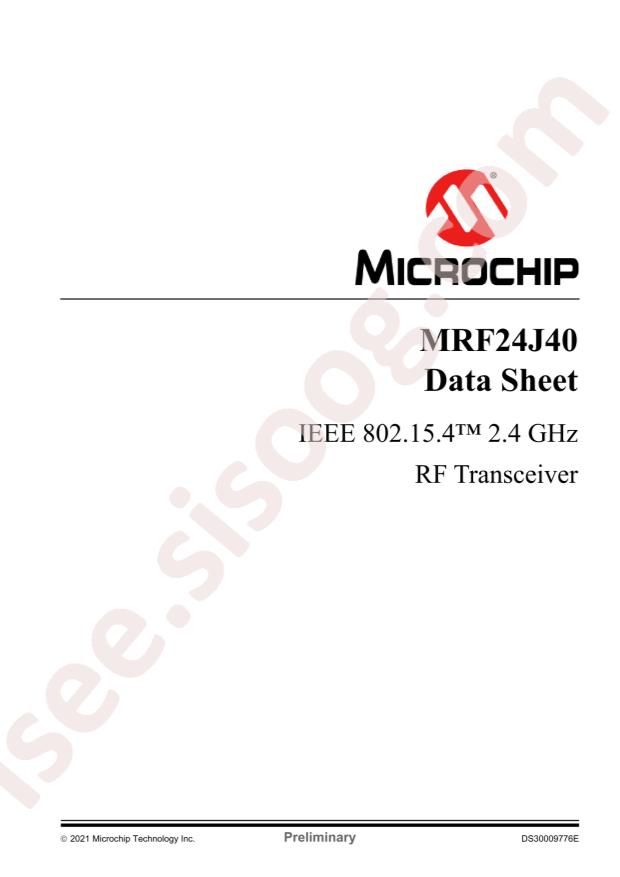

- دیتاشیت MRF24J40T-I/ML
MRF24J40T-I/ML دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MRF24J40T-I/ML |
|---|---|
| حجم فایل | 29.283 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 151 |
دانلود دیتاشیت MRF24J40T-I/ML |
دانلود دیتاشیت |
|---|
سایر مستندات
MRF24J40 151 pages
MRF24J40 Silicon Errata 6 pages
مشخصات فنی
- RoHS: true
- Category: Radio Frequency Chip/Antenna/RF Transceiver ICs
- Data Rate: 625Kbps
- Datasheet: Microchip Tech MRF24J40T-I/ML
- Interface: SPI
- Applications: 802.15.4
- Frequency Range: 2.4GHz
- Receive Current: 19mA
- Operating Voltage: 2.4V~3.6V
- Operating Temperature: -40°C~+85°C
- Current Of Transmitting: 23mA
- Package: QFN-40-EP(6x6)
- Manufacturer: Microchip Tech
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Type: TxRx + MCU
- RF Family/Standard: 802.15.4
- Protocol: Zigbee®, MiWi®
- Modulation: O-QPSK
- Frequency: 2.4GHz
- Data Rate (Max): 625kbps
- Power - Output: 0dBm
- Sensitivity: -95dBm
- Memory Size: -
- Serial Interfaces: SPI
- GPIO: 6
- Voltage - Supply: 2.4V ~ 3.6V
- Current - Receiving: 19mA
- Current - Transmitting: 23mA
- Mounting Type: Surface Mount
- Package / Case: 40-VFQFN Exposed Pad
- Supplier Device Package: 40-QFN (6x6)
- Base Part Number: MRF24J40
- detail: IC RF TxRx + MCU 802.15.4 Zigbee®, MiWi® 2.4GHz 40-VFQFN Exposed Pad
