دیتاشیت LTC1983ES6-5#TRMPBF
مشخصات دیتاشیت
| نام دیتاشیت | LTC1983-3, -5 Datasheet |
|---|---|
| حجم فایل | 234.882 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 14 |

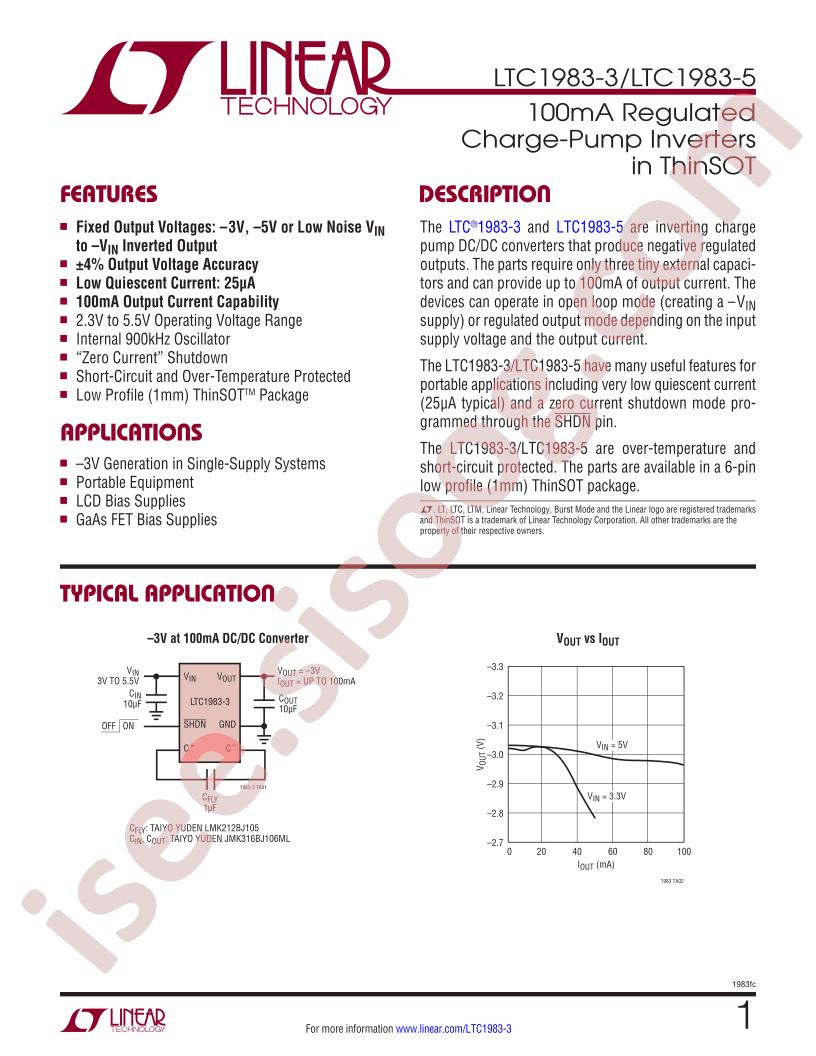

دانلود دیتاشیت LTC1983-3, -5 Datasheet |
LTC1983-3, -5 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: -
- Datasheet: Analog Devices LTC1983ES6-5#TRMPBF
- Output Type: Fixed
- Input Voltage: 2.3V~5.5V
- Output Voltage: -5V
- Number of Outputs: 1
- Switching Frequency: 900kHz
- Output Current (Max): 100mA
- Operating Temperature: -40°C~+85°C@(TA)
- Synchronous Rectification: NO
- Package: SOT-23-6
- Manufacturer: Analog Devices
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Negative
- Voltage - Input (Min): 2.3V
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): -5V
- Voltage - Output (Max): -
- Current - Output: 100mA
- Frequency - Switching: 900kHz
- Synchronous Rectifier: No
- Mounting Type: Surface Mount
- Package / Case: SOT-23-6 Thin, TSOT-23-6
- Supplier Device Package: TSOT-23-6
- Base Part Number: LTC1983
- detail: Charge Pump Switching Regulator IC Negative Fixed -5V 1 Output 100mA SOT-23-6 Thin, TSOT-23-6
