LT8410IDC#TRMPBF دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت LT8410IDC#TRMPBF	دانلود دیتاشیت

مستندات دیگری یافت نشد!

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: boost converterType
Topology: Boost

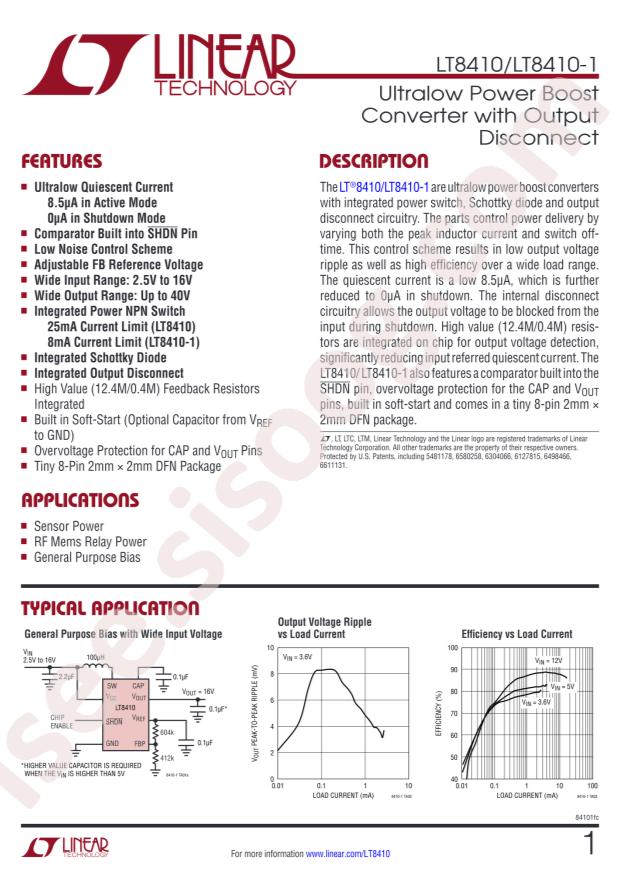

Datasheet: Analog Devices LT8410IDC#TRMPBF
Output Type: Adjustable
Input Voltage: 2.5V~16V
Output Voltage: 1.235V~40V
Number of Outputs: 1
Switching Frequency: -
Output Current (Max): 20mA
Operating Temperature: -40°C~+125°C@(TJ)
Synchronous Rectification: NO
Package: DFN-8(2x2)
Manufacturer: Analog Devices
Series: -
Packaging: Tube
Part Status: Obsolete
Output Configuration: Positive
Voltage - Input (Min): 2.5V
Voltage - Input (Max): 16V
Voltage - Output (Min/Fixed): 1.235V
Voltage - Output (Max): 40V (Switch)
Current - Output: 20mA (Switch)
Frequency - Switching: -
Synchronous Rectifier: No
Mounting Type: Surface Mount
Package / Case: 8-WFDFN Exposed Pad
Supplier Device Package: 8-DFN (2x2)
detail: Boost Switching Regulator IC Positive Adjustable 1.235V 1 Output 20mA (Switch) 8-WFDFN Exposed Pad
