دیتاشیت MIC2172YN
مشخصات دیتاشیت
| نام دیتاشیت | MIC2172, MIC3172 |
|---|---|
| حجم فایل | 1938.267 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 32 |
دانلود دیتاشیت MIC2172, MIC3172 |

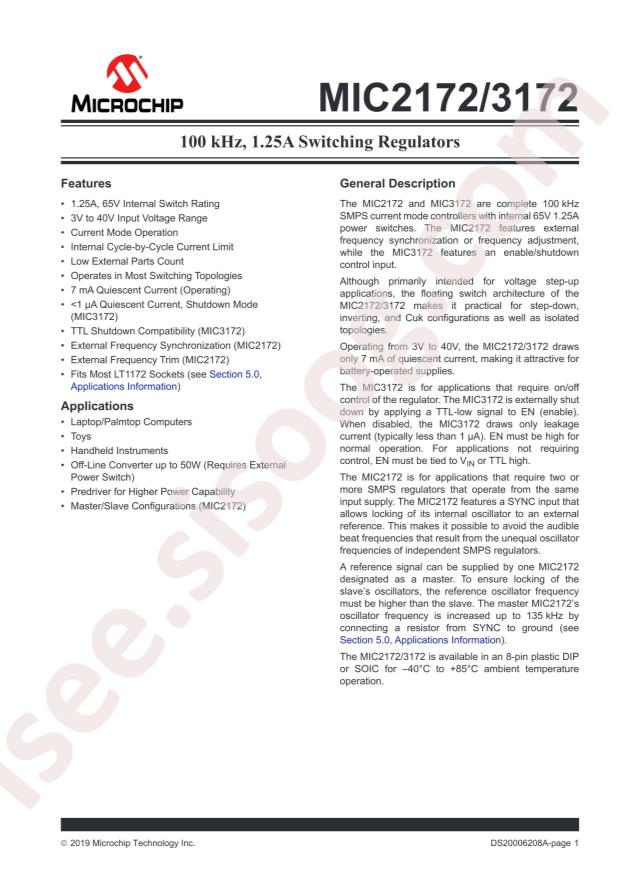

MIC2172, MIC3172 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: boost converterType;Buck-boost type
- Topology: Boost;Cuk;Flyback
- Datasheet: Microchip Tech MIC2172YN
- Output Type: Adjustable
- Input Voltage: 3V~40V
- Output Voltage: 1.24V~65V
- Number of Outputs: 1
- Switching Frequency: 100kHz
- Output Current (Max): 1.25A
- Operating Temperature: -40°C~+85°C@(TA)
- Synchronous Rectification: NO
- Package: PDIP-8
- Manufacturer: Microchip Tech
- Series: -
- Packaging: Tube
- Part Status: Active
- Output Configuration: Positive or Negative, Isolation Capable
- Voltage - Input (Min): 3V
- Voltage - Input (Max): 40V
- Voltage - Output (Min/Fixed): 1.24V
- Voltage - Output (Max): 65V (Switch)
- Current - Output: 1.25A (Switch)
- Frequency - Switching: 100kHz
- Synchronous Rectifier: No
- Mounting Type: Through Hole
- Package / Case: 8-DIP (0.300", 7.62mm)
- Supplier Device Package: 8-PDIP
- Base Part Number: MIC2172
- detail: Boost, Cuk, Flyback, Forward Converter Switching Regulator IC Positive or Negative, Isolation Capable Adjustable 1.24V 1 Output 1.25A (Switch) 8-DIP (0.300", 7.62mm)
