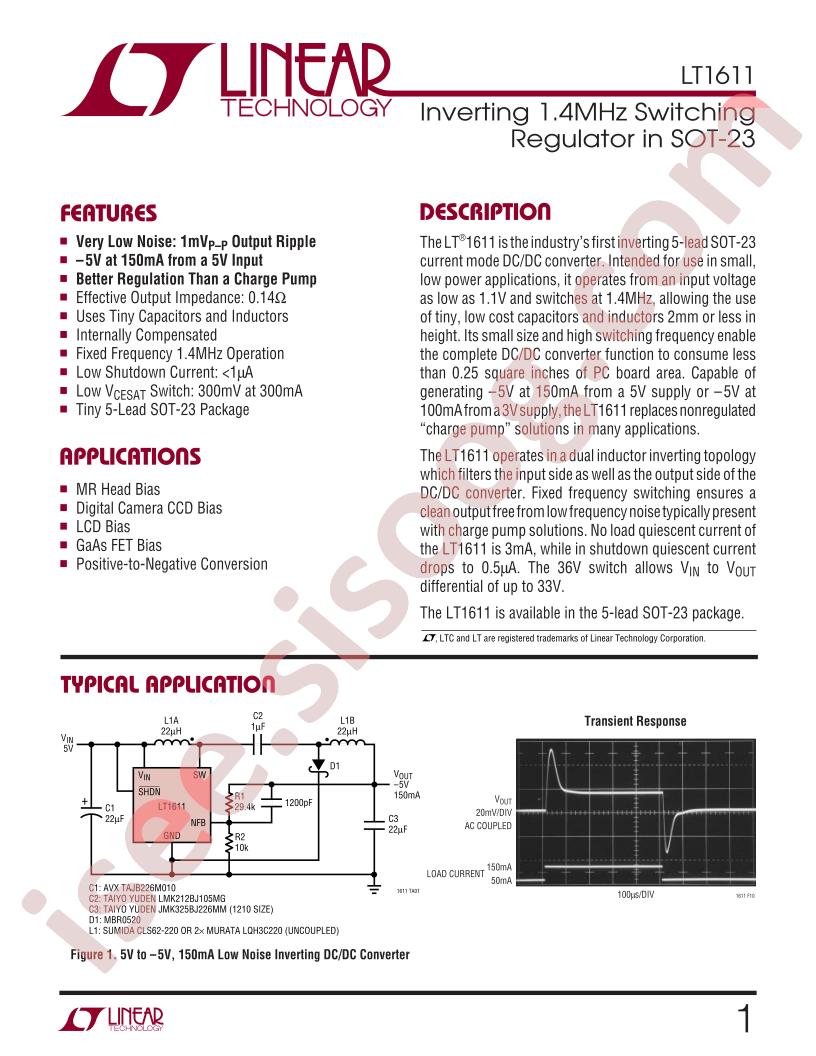

دیتاشیت LT1611CS5#TRMPBF
مشخصات دیتاشیت
| نام دیتاشیت |
LT1611
|
| حجم فایل |
270.829
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
12
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
boost converterType;Buck-boost type
-
Topology:
Boost;Cuk
-
Datasheet:
Analog Devices LT1611CS5#TRMPBF
-
Output Type:
Adjustable
-
Input Voltage:
0.9V~10V
-
Output Voltage:
-10V~-0.9V
-
Number of Outputs:
1
-
Switching Frequency:
1.4MHz
-
Output Current (Max):
550mA
-
Operating Temperature:
0°C~+70°C@(TA)
-
Synchronous Rectification:
NO
-
Package:
SOT-23-5
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Negative
-
Voltage - Input (Min):
0.9V
-
Voltage - Input (Max):
10V
-
Voltage - Output (Min/Fixed):
-0.9V
-
Voltage - Output (Max):
-10V (Switch)
-
Current - Output:
550mA (Switch)
-
Frequency - Switching:
1.4MHz
-
Synchronous Rectifier:
No
-
Mounting Type:
Surface Mount
-
Package / Case:
SOT-23-5 Thin, TSOT-23-5
-
Supplier Device Package:
SOT-23-5
-
Base Part Number:
LT1611
-
detail:
Boost, Charge Pump, Cuk Switching Regulator IC Negative Adjustable -0.9V 1 Output 550mA (Switch) SOT-23-5 Thin, TSOT-23-5
