- MAX16826ATJ+C24

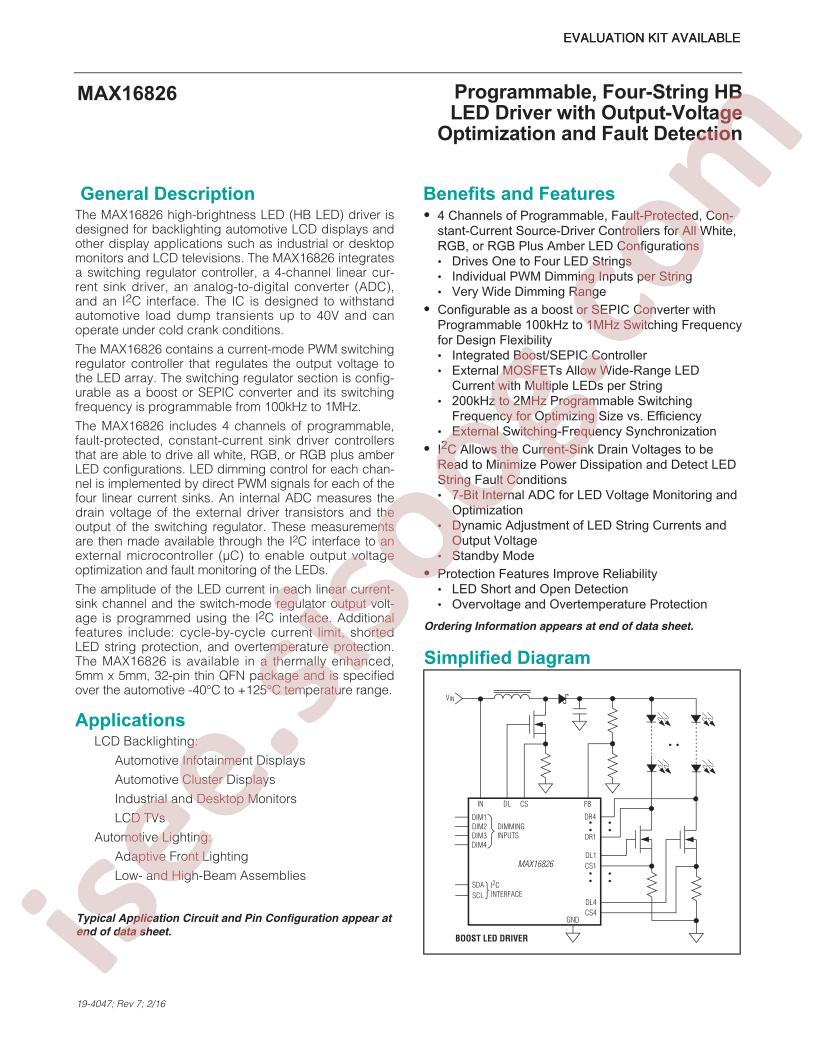

MAX16826ATJ+C24 Datasheet
Datasheet specifications
| Datasheet's name | MAX16826ATJ+C24 |
|---|---|
| File size | 107.16 KB |
| File type | |
| Number of pages | 26 |
Download Datasheet MAX16826ATJ+C24 |
Download Datasheet |
|---|
Other documentations
Part Numbering System 7 pages
MAX16826 26 pages
Technical specifications
- RoHS: true
- Category: Nixie Tube Driver/LED Driver/LED Drivers
- Datasheet: Analog Devices Inc./Maxim Integrated MAX16826ATJ+C24
- Package: TQFN-32-EP(5x5)
- Manufacturer: Analog Devices Inc./Maxim Integrated
- Applications: Automotive, Backlight
- Number of Outputs: 4
- Supplier Device Package: 32-TQFN (5x5)
- Internal Switch(s): No
- Dimming: PWM
- Voltage - Supply (Min): 4.75V
- Package / Case: 32-WFQFN Exposed Pad
- Part Status: Active
- Voltage - Supply (Max): 24V
- Operating Temperature: -40°C ~ 125°C (TA)
- Type: DC DC Controller
- Series: -
- Base Part Number: MAX16826
- Mounting Type: Surface Mount
- Voltage - Output: -
- Frequency: 100kHz ~ 1MHz
- Packaging: Tray
- Current - Output / Channel: -
- Topology: SEPIC, Step-Up (Boost)
- detail: LED Driver IC 4 Output DC DC Controller SEPIC, Step-Up (Boost) PWM Dimming 32-TQFN (5x5)
