دیتاشیت DS12885S+T&R

مشخصات دیتاشیت

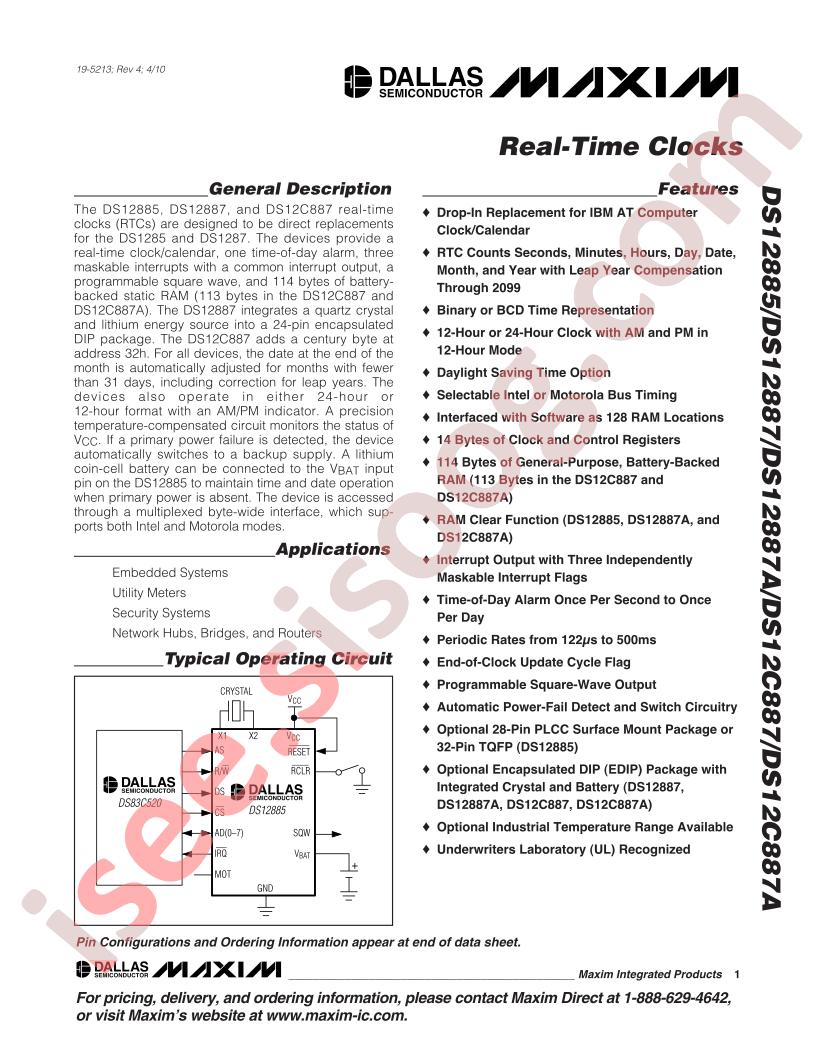

دانلود دیتاشیت DS12(C)885,87(A)	DS12(C)885,87(A) Datasheet

RoHS: true
Category: RTC/Clock Chip/Real-time Clocks (RTC)
Datasheet: Analog Devices Inc./Maxim Integrated DS12885S+T&R
Interface: parallel connection
Operating Voltage: 4.5V~5.5V
Operating Temperature: 0°C~+70°C
Package: SOP-24-300mil
Manufacturer: Analog Devices Inc./Maxim Integrated
Features: Alarm, Daylight Savings, Leap Year, NVSRAM, Square Wave Output
Supplier Device Package: 24-SOIC
Voltage - Supply, Battery: 2.5V ~ 4V
Date Format: YY-MM-DD-dd
Memory Size: 114B
Part Status: Active
Type: Clock/Calendar
Series: -
Time Format: HH:MM:SS (12/24 hr)
Mounting Type: Surface Mount
Package / Case: 24-SOIC (0.295", 7.50mm Width)
Current - Timekeeping (Max): 15mA @ 4.5V ~ 5.5V
Packaging: Tube
Voltage - Supply: 4.5V ~ 5.5V
Base Part Number: DS12885
detail: Real Time Clock (RTC) IC Clock/Calendar 114B Parallel 24-SOIC (0.295", 7.50mm Width)
