دیتاشیت ATMEGA128RFA1-ZUR

مشخصات دیتاشیت

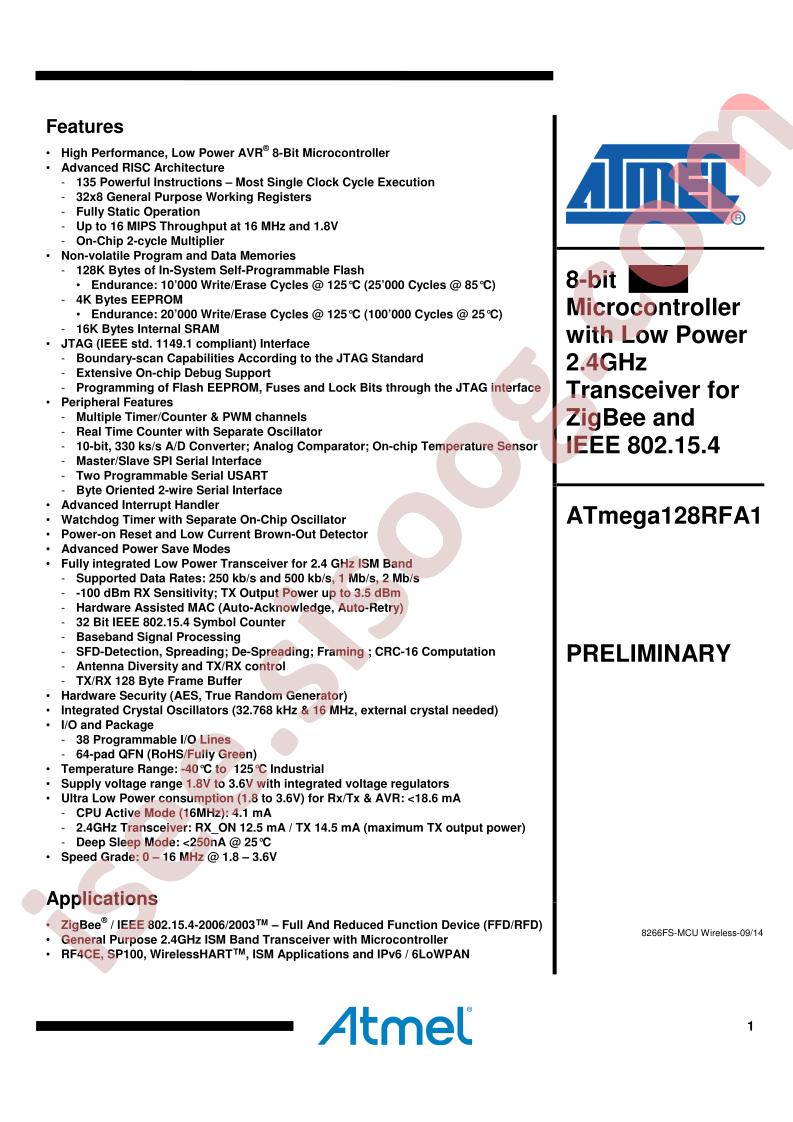

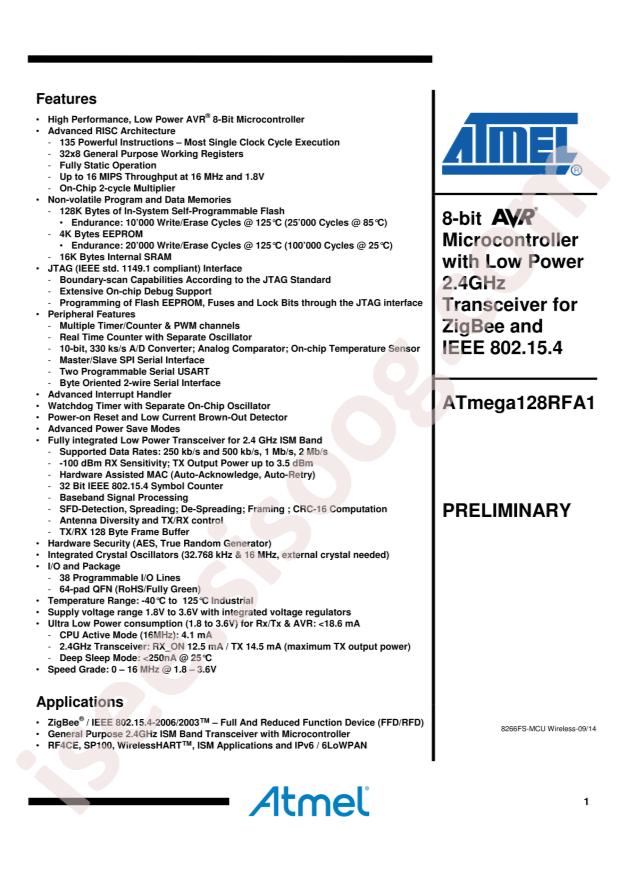

دانلود دیتاشیت ATmega128RFA1 Summary	ATmega128RFA1 Summary Datasheet

RoHS: true
Category: Radio Frequency Chip/Antenna/RF Transceiver ICs
Data Rate: 2Mbps
Datasheet: Microchip Tech ATMEGA128RFA1-ZUR
Interface: I2C,JTAG,SPI,USART
Applications: 802.15.4
Frequency Range: 2.4GHz
Receive Current: 12mA
Operating Voltage: 1.8V~3.6V
Operating Temperature: -40°C~+85°C
Current Of Transmitting: 8mA
Package: QFN-64(9x9)
Manufacturer: Microchip Tech
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Type: TxRx + MCU
RF Family/Standard: 802.15.4
Protocol: 6LoWPAN, Zigbee®
Modulation: O-QPSK
Frequency: 2.4GHz
Data Rate (Max): 2Mbps
Power - Output: 3.5dBm
Sensitivity: -100dBm
Memory Size: 128kB Flash, 4kB EEPROM, 16kB SRAM
Serial Interfaces: I²C, JTAG, SPI, USART
GPIO: 38
Voltage - Supply: 1.8V ~ 3.6V
Current - Receiving: 12mA ~ 12.5mA
Current - Transmitting: 8mA ~ 14.5mA
Mounting Type: Surface Mount
Package / Case: 64-VFQFN Exposed Pad
Supplier Device Package: 64-QFN (9x9)
Base Part Number: ATMEGA128RFA1
detail: IC RF TxRx + MCU 802.15.4 6LoWPAN, Zigbee® 2.4GHz 64-VFQFN Exposed Pad
