MIC22950YML-TR دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت MIC22950YML-TR	دانلود دیتاشیت

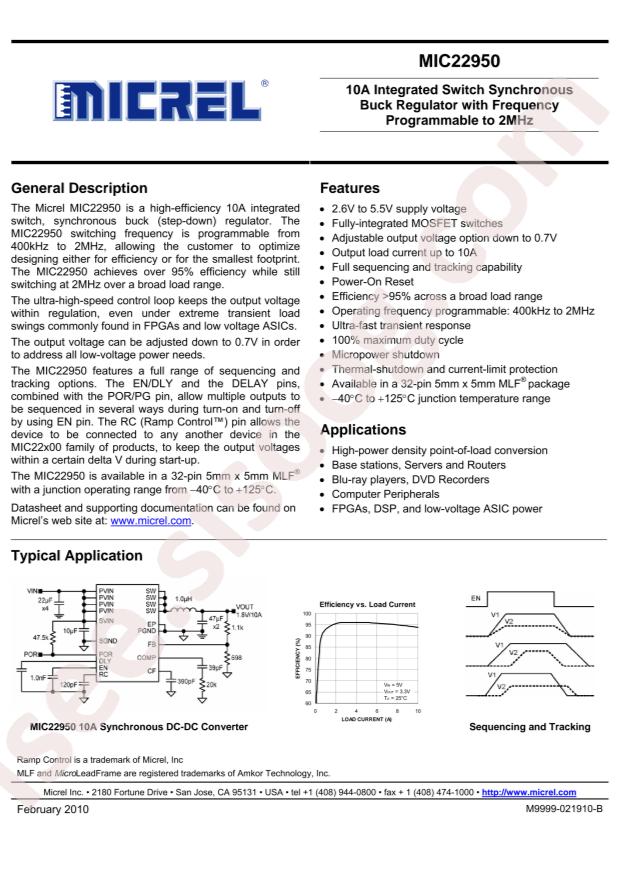

MIC22950 22 pages

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: Microchip Tech MIC22950YML-TR
Output Type: Adjustable
Input Voltage: 2.6V~5.5V
Output Voltage: 0.7V~5.5V
Number of Outputs: 1
Switching Frequency: 2MHz
Output Current (Max): 10A
Operating Temperature: -40°C~+125°C@(TJ)
Synchronous Rectification: Yes
Package: MLF-32
Manufacturer: Microchip Tech
Series: -
Packaging: Cut Tape (CT)
Part Status: Discontinued at Digi-Key
Output Configuration: Positive
Voltage - Input (Min): 2.6V
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): 0.7V
Voltage - Output (Max): 5.5V
Current - Output: 10A
Frequency - Switching: 400kHz ~ 2MHz
Synchronous Rectifier: Yes
Mounting Type: Surface Mount
Package / Case: 32-VFQFN Exposed Pad, 32-MLF®
Supplier Device Package: 32-MLF® (5x5)
Base Part Number: MIC22950
detail: Buck Switching Regulator IC Positive Adjustable 0.7V 1 Output 10A 32-VFQFN Exposed Pad, 32-MLF®
