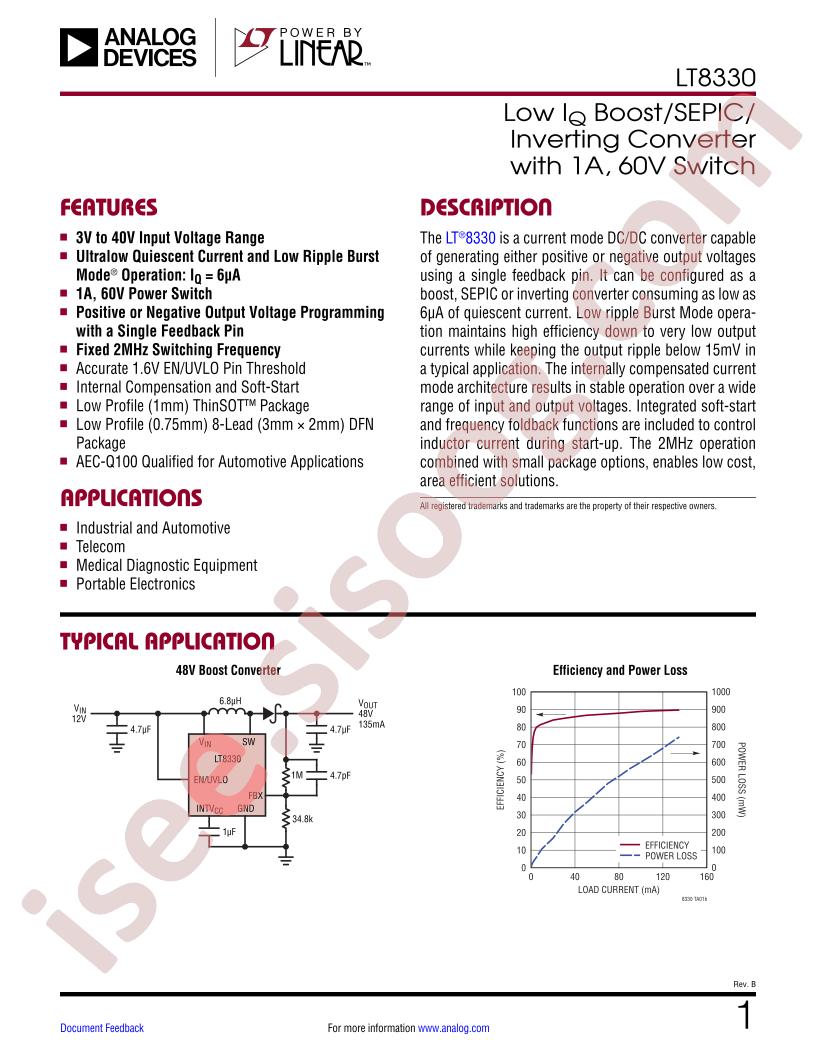

دیتاشیت LT8330IS6#TRMPBF
مشخصات دیتاشیت
| نام دیتاشیت | LT8330 Datasheet |
|---|---|
| حجم فایل | 1588.186 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 24 |
دانلود دیتاشیت LT8330 Datasheet |
LT8330 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: boost converterType;Buck-boost type
- Topology: Boost;SEPIC
- Datasheet: Analog Devices LT8330IS6#TRMPBF
- Output Type: Adjustable
- Input Voltage: 3V~40V
- Output Voltage: 1.6V;-0.8V~60V
- Number of Outputs: 1
- Switching Frequency: 2MHz
- Output Current (Max): 1A
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: NO
- Package: SOT-23-6
- Manufacturer: Analog Devices
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Positive or Negative, Isolation Capable
- Voltage - Input (Min): 3V
- Voltage - Input (Max): 40V
- Voltage - Output (Min/Fixed): 1.6V, -0.8V
- Voltage - Output (Max): 60V (Switch)
- Current - Output: 1A
- Frequency - Switching: 2MHz
- Synchronous Rectifier: No
- Mounting Type: Surface Mount
- Package / Case: SOT-23-6 Thin, TSOT-23-6
- Supplier Device Package: TSOT-23-6
- Base Part Number: LT8330
- detail: Boost, SEPIC Switching Regulator IC Positive or Negative, Isolation Capable Adjustable 1.6V, -0.8V 1 Output 1A SOT-23-6 Thin, TSOT-23-6
