MAX1843ETI+T دیتاشیت

مشخصات دیتاشیت

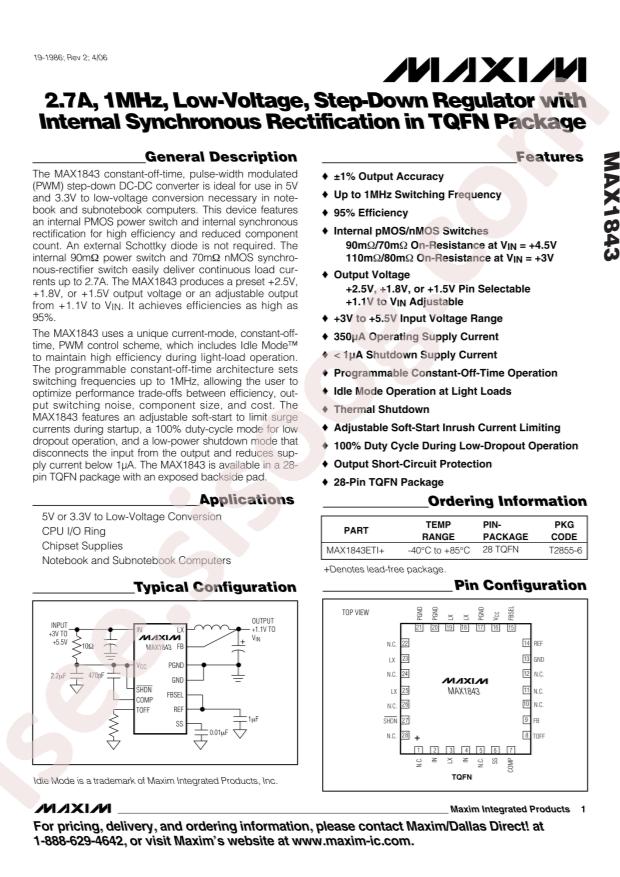

دانلود دیتاشیت MAX1843ETI+T	دانلود دیتاشیت

MAX1843 13 pages

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: Analog Devices Inc./Maxim Integrated MAX1843ETI+T
Output Type: Adjustable
Input Voltage: 3V~5.5V
Output Voltage: 1.1V~5.5V
Number of Outputs: 1
Switching Frequency: 1MHz
Output Current (Max): 2.7A
Operating Temperature: -40°C~+85°C@(TA)
Synchronous Rectification: Yes
Package: TQFN-28-EP(5x5)
Manufacturer: Analog Devices Inc./Maxim Integrated
Voltage - Input (Max): 5.5V
Voltage - Input (Min): 3V
Output Configuration: Positive
Supplier Device Package: 28-TQFN (5x5)
Package / Case: 28-WFQFN Exposed Pad
Frequency - Switching: 1MHz
Current - Output: 2.7A
Part Status: Active
Series: -
Voltage - Output (Max): 5.5V
Base Part Number: MAX1843
Mounting Type: Surface Mount
Synchronous Rectifier: Yes
Voltage - Output (Min/Fixed): 1.1V (1.5V, 1.8V, 2.5V)
Packaging: Tube
detail: Buck Switching Regulator IC Positive Adjustable (Programmable) 1.1V (1.5V, 1.8V, 2.5V) 1 Output 2.7A 28-WFQFN Exposed Pad
