دیتاشیت LT1054CS8#TRPBF
مشخصات دیتاشیت
| نام دیتاشیت | LT1054CS8#TRPBF |
|---|---|
| حجم فایل | 106.868 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 16 |
LT1054CS8#TRPBF |
دانلود دیتاشیت |
|---|
سایر مستندات

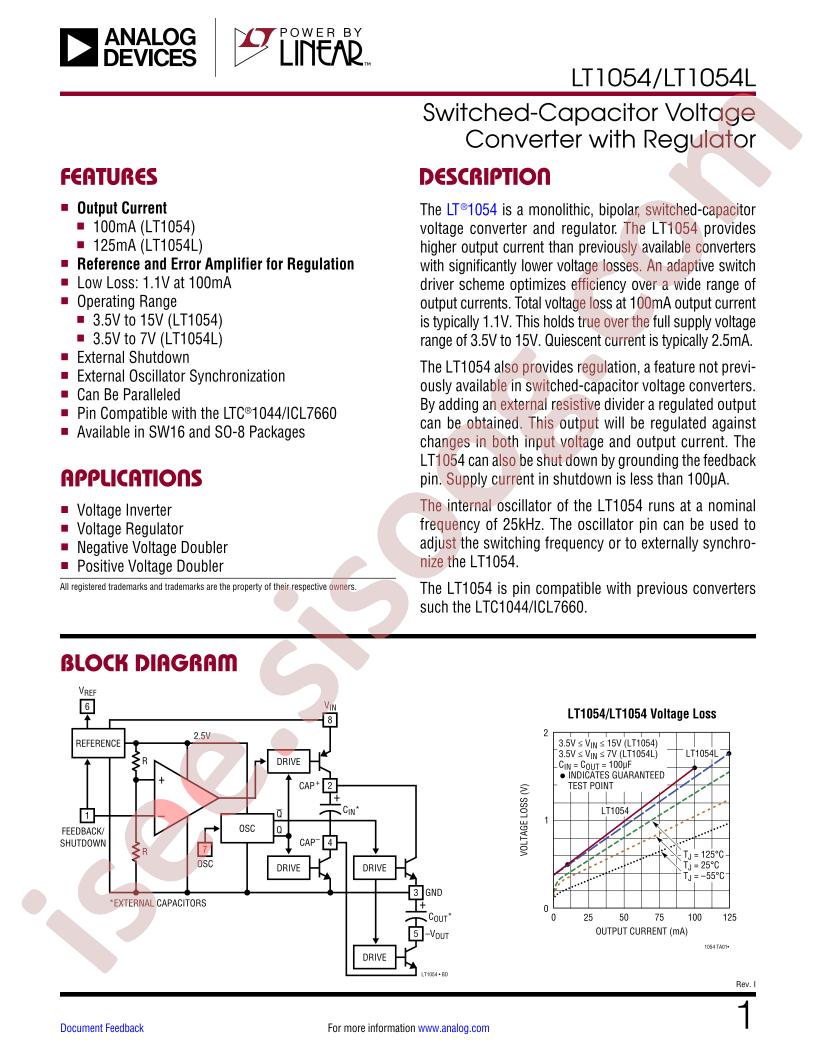

LT1054, LT1054L Datasheet 16 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: boost converterType
- Topology: -
- Datasheet: Analog Devices LT1054CS8#TRPBF
- Output Type: 可调和固定
- Input Voltage: 3.5V~15V
- Output Voltage: 2.5V~30V
- Number of Outputs: 1
- Switching Frequency: 25kHz
- Output Current (Max): 100mA
- Operating Temperature: 0°C~+100°C@(TJ)
- Synchronous Rectification: NO
- Package: SOP-8
- Manufacturer: Analog Devices
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Positive or Negative
- Voltage - Input (Min): 3.5V
- Voltage - Input (Max): 15V
- Voltage - Output (Min/Fixed): 2.5V (-Vin, 2Vin)
- Voltage - Output (Max): 30V
- Current - Output: 100mA
- Frequency - Switching: 25kHz
- Synchronous Rectifier: No
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SOIC
- Base Part Number: LT1054
- detail: Charge Pump Switching Regulator IC Positive or Negative Adjustable (Fixed) 2.5V (-Vin, 2Vin) 1 Output 100mA 8-SOIC (0.154", 3.90mm Width)
