دیتاشیت LTC1877EMS8#TRPBF
مشخصات دیتاشیت
| نام دیتاشیت | LTC1877 |
|---|---|
| حجم فایل | 245.759 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 18 |
دانلود دیتاشیت LTC1877 |

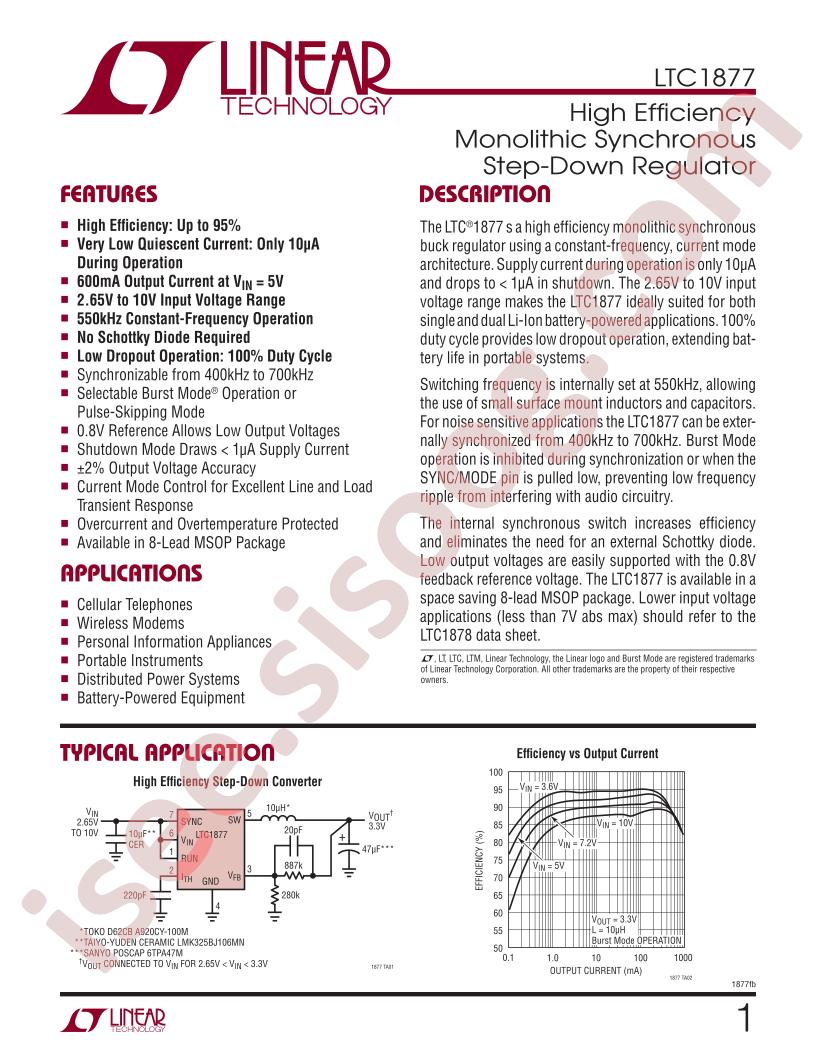

LTC1877 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Datasheet: Analog Devices LTC1877EMS8#TRPBF
- Output Type: Adjustable
- Input Voltage: 2.65V~10V
- Output Voltage: 0.8V~10V
- Number of Outputs: 1
- Switching Frequency: 550kHz
- Output Current (Max): 600mA
- Operating Temperature: -40°C~+85°C@(TA)
- Synchronous Rectification: Yes
- Package: MSOP-8
- Manufacturer: Analog Devices
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Positive
- Voltage - Input (Min): 2.65V
- Voltage - Input (Max): 10V
- Voltage - Output (Min/Fixed): 0.8V
- Voltage - Output (Max): 10V
- Current - Output: 600mA
- Frequency - Switching: 550kHz
- Synchronous Rectifier: Yes
- Mounting Type: Surface Mount
- Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Supplier Device Package: 8-MSOP
- Base Part Number: LTC1877
- detail: Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 600mA 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
