دیتاشیت DSPIC30F2010T-30I/MM
مشخصات دیتاشیت

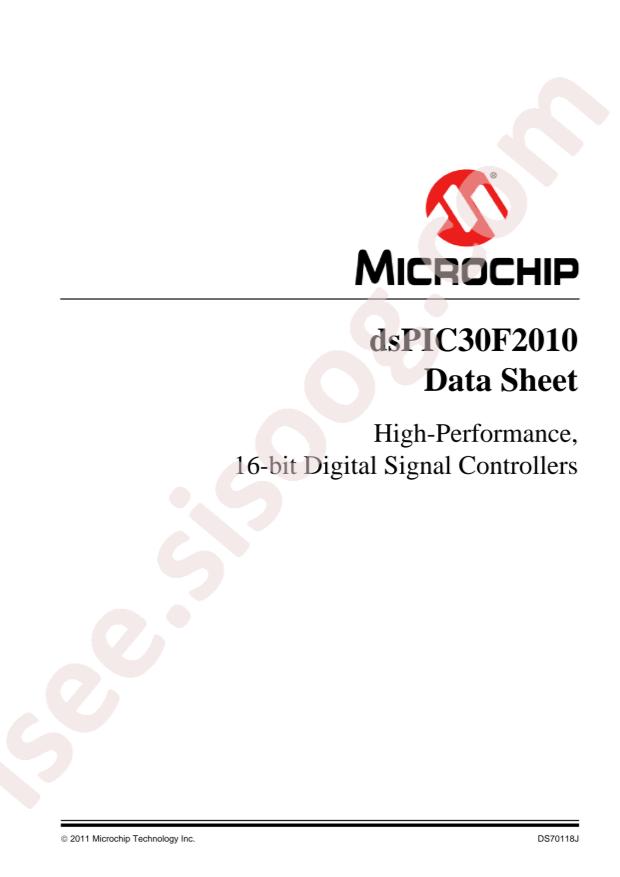

| نام دیتاشیت | dsPIC30F2010 Datasheet |
|---|---|
| حجم فایل | 2887.619 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 202 |
دانلود دیتاشیت dsPIC30F2010 Datasheet |
dsPIC30F2010 Datasheet Datasheet |
|---|
مشخصات
- CAN: -
- I2C: -
- I2S: -
- SPI: -
- RoHS: true
- EEPROM: -
- CPU Core: Other series
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 512Byte
- Watchdog: Yes
- ADC (Bit): 10bit
- DAC (Bit): -
- Datasheet: Microchip Tech DSPIC30F2010T-30I/MM
- PWM (Bit): -
- 8Bit Timer: -
- UART/USART: -
- 16Bit Timer: -
- 32Bit Timer: -
- Real-Time Clock: -
- CPU Maximum Speed: -
- GPIO Ports Number: 20
- Low-Voltage Detect: -
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: WDT
- Program Memory Type: FLASH
- Direct Memory Access: -
- Program Storage Size: 4KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 2.5V~5.5V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: QFN-28-EP(6x6)
- Manufacturer: Microchip Tech
- Series: dsPIC™ 30F
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Core Processor: dsPIC
- Core Size: 16-Bit
- Speed: 30 MIPs
- Connectivity: I²C, SPI, UART/USART
- Peripherals: Brown-out Detect/Reset, Motor Control PWM, QEI, POR, PWM, WDT
- Number of I/O: 20
- Program Memory Size: 12KB (4K x 24)
- EEPROM Size: 1K x 8
- Voltage - Supply (Vcc/Vdd): 2.5V ~ 5.5V
- Data Converters: A/D 6x10b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 28-VQFN Exposed Pad
- Supplier Device Package: 28-QFN-S (6x6)
- Base Part Number: DSPIC30F2010
- detail: dsPIC dsPIC™ 30F Microcontroller IC 16-Bit 30 MIPs 12KB (4K x 24) FLASH 28-QFN-S (6x6)
