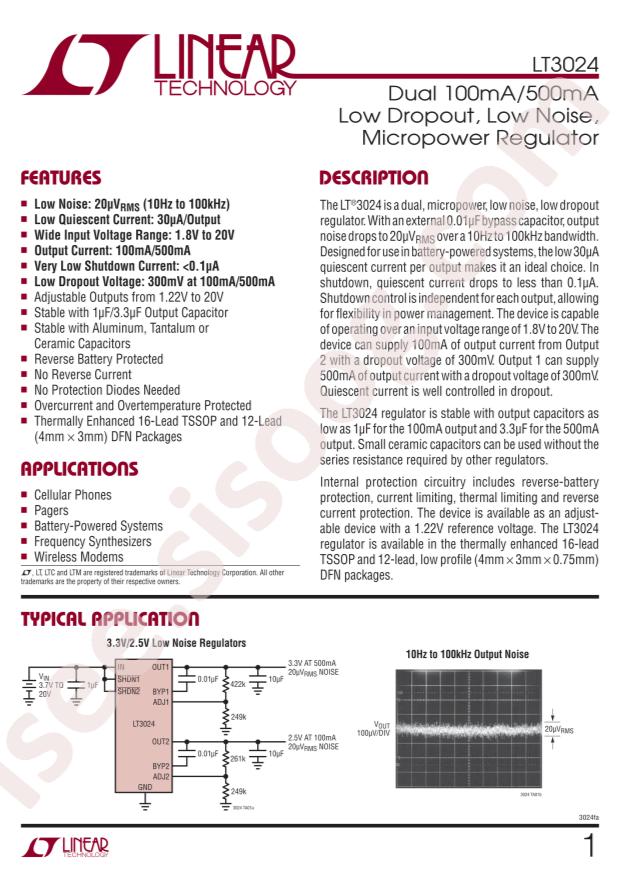

LT3024EFE#PBF دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
LT3024EFE#PBF
|
|
حجم فایل
|
109.054
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
20
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Analog Devices LT3024EFE#PBF
-
Output Type:
Adjustable
-
Output Current:
100mA;500mA
-
Output Voltage:
1.22V~20V
-
Dropout Voltage:
0.45V@(100mA);0.45V@(500mA)
-
Output Polarity:
positive
-
Number of Outputs:
2
-
Maximum Input Voltage:
20V
-
Operating Temperature:
-40°C~+125°C
-
Power Supply Rejection Ratio (PSRR):
65dB@(120Hz)
-
Package:
TSSOP-16-EP
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Output Configuration:
Positive
-
Number of Regulators:
2
-
Voltage - Input (Max):
20V
-
Voltage - Output (Min/Fixed):
1.22V
-
Voltage - Output (Max):
20V
-
Voltage Dropout (Max):
0.45V @ 100mA, 0.45V @ 500mA
-
Current - Output:
100mA, 500mA
-
PSRR:
65dB (120Hz)
-
Control Features:
Enable
-
Protection Features:
Over Current, Over Temperature, Reverse Polarity
-
Mounting Type:
Surface Mount
-
Package / Case:
16-TSSOP (0.173", 4.40mm Width) Exposed Pad
-
Supplier Device Package:
16-TSSOP-EP
-
Base Part Number:
LT3024
-
detail:
Linear Voltage Regulator IC 2 Output 100mA, 500mA 16-TSSOP-EP
