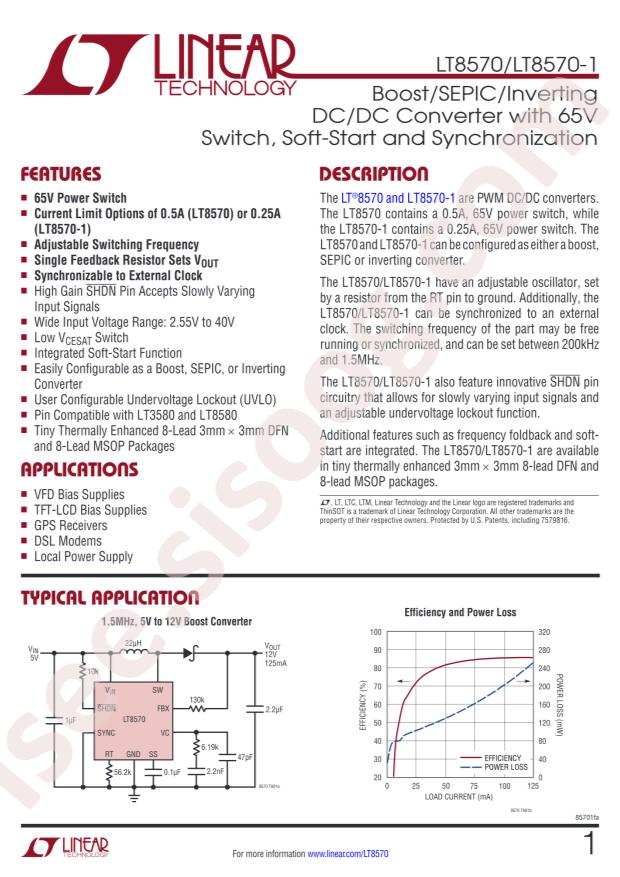

LT8570IDD-1#PBF دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | LT8570IDD-1#PBF |
|---|---|
| حجم فایل | 103.536 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 34 |
دانلود دیتاشیت LT8570IDD-1#PBF |
دانلود دیتاشیت |
|---|
سایر مستندات
LTpowerPlanner III Quick Start Guide 40 pages
LT8570(-1) 34 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: boost converterType;Buck-boost type
- Topology: Boost;Cuk;SEPIC
- Datasheet: Analog Devices LT8570IDD-1#PBF
- Output Type: Adjustable
- Input Voltage: 2.55V~40V
- Output Voltage: 0.003V;1.204V~65V
- Number of Outputs: 1
- Switching Frequency: 1.5MHz
- Output Current (Max): 375mA
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: NO
- Package: DFN-8(3x3)
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tube
- Part Status: Active
- Output Configuration: Positive or Negative
- Voltage - Input (Min): 2.55V
- Voltage - Input (Max): 40V
- Voltage - Output (Min/Fixed): 3mV, 1.204V
- Voltage - Output (Max): 65V (Switch)
- Current - Output: 375mA (Switch)
- Frequency - Switching: 200kHz ~ 1.5MHz
- Synchronous Rectifier: No
- Mounting Type: Surface Mount
- Package / Case: 8-WFDFN Exposed Pad
- Supplier Device Package: 8-DFN (3x3)
- Base Part Number: LT8570
- detail: Boost, Charge Pump, Cuk, SEPIC Switching Regulator IC Positive or Negative Adjustable 3mV, 1.204V 1 Output 375mA (Switch) 8-WFDFN Exposed Pad
