دیتاشیت LT8301IS5#TRPBF
مشخصات دیتاشیت
| نام دیتاشیت | LT8301 Datasheet |
|---|---|
| حجم فایل | 1379.494 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 24 |

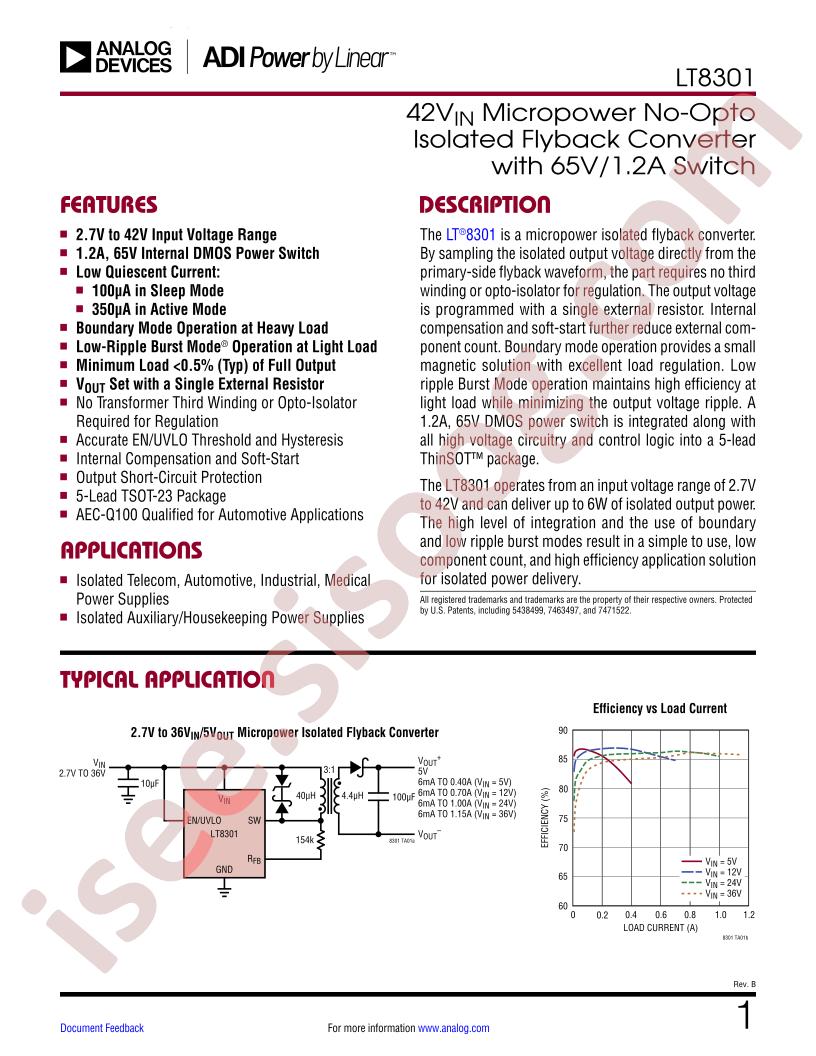

دانلود دیتاشیت LT8301 Datasheet |
LT8301 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: boost converterType;Step-down type
- Topology: Flyback
- Datasheet: Analog Devices LT8301IS5#TRPBF
- Input Voltage: 2.7V~42V
- Number of Outputs: 1
- Switching Frequency: 10kHz
- Output Current (Max): 1.2A
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: NO
- Package: TSOT-23-5
- Manufacturer: Analog Devices
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Positive or Negative, Isolation Capable
- Output Type: -
- Voltage - Input (Min): 2.7V
- Voltage - Input (Max): 42V
- Voltage - Output (Min/Fixed): -
- Voltage - Output (Max): -
- Current - Output: 1.2A
- Frequency - Switching: Down to 10kHz
- Synchronous Rectifier: No
- Mounting Type: Surface Mount
- Package / Case: SOT-23-5 Thin, TSOT-23-5
- Supplier Device Package: TSOT-23-5
- Base Part Number: LT8301
- detail: Flyback Switching Regulator IC Positive or Negative, Isolation Capable 1 Output 1.2A SOT-23-5 Thin, TSOT-23-5
