- دیتاشیت LTC3810EG#TRPBF
دیتاشیت LTC3810EG#TRPBF
مشخصات دیتاشیت
| نام دیتاشیت | LTC3810EG#TRPBF |
|---|---|
| حجم فایل | 111.395 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 38 |
LTC3810EG#TRPBF |
دانلود دیتاشیت |
|---|
سایر مستندات
LTpowerCAD II Quick Start Guide 36 pages
LTpowerCAD II User Guide 60 pages

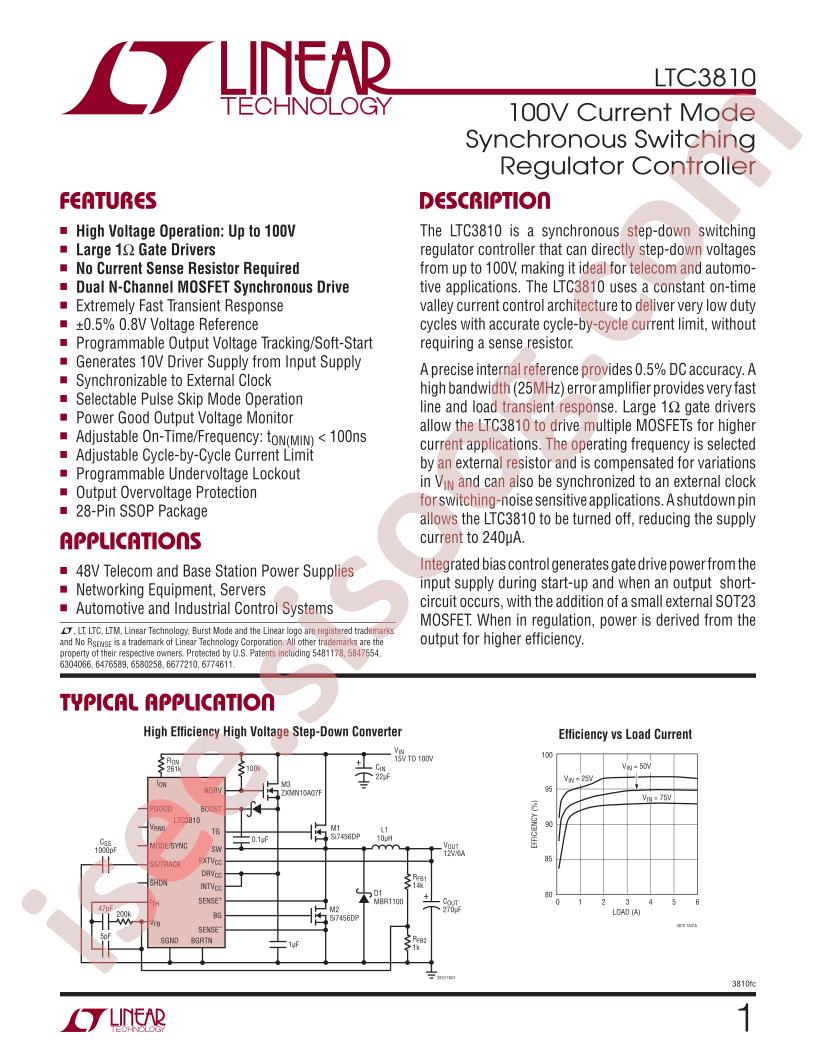

LTC3810 Datasheet 38 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/DC-DC Controllers
- Function: Step-down type
- Topology: Step-down
- Datasheet: Analog Devices LTC3810EG#TRPBF
- Input Voltage: 6.35V~14V
- Number of Outputs: 1
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: Yes
- Package: SSOP-28-150mil
- Manufacturer: Analog Devices
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Type: Transistor Driver
- Output Configuration: Positive
- Output Phases: 1
- Voltage - Supply (Vcc/Vdd): 6.35V ~ 14V
- Frequency - Switching: -
- Duty Cycle (Max): -
- Synchronous Rectifier: Yes
- Clock Sync: Yes
- Serial Interfaces: -
- Control Features: Enable, Power Good, Soft Start, Tracking
- Mounting Type: Surface Mount
- Package / Case: 28-SSOP (0.209", 5.30mm Width)
- Supplier Device Package: 28-SSOP
- Base Part Number: LTC3810
- detail: Buck Regulator Positive Output Step-Down DC-DC Controller IC 28-SSOP
