- دیتاشیت ATMEGA162-16MUR
دیتاشیت ATMEGA162-16MUR
مشخصات دیتاشیت
| نام دیتاشیت | ATMEGA162(V) Summary |
|---|---|
| حجم فایل | 518.08 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 22 |
دانلود دیتاشیت ATMEGA162(V) Summary |

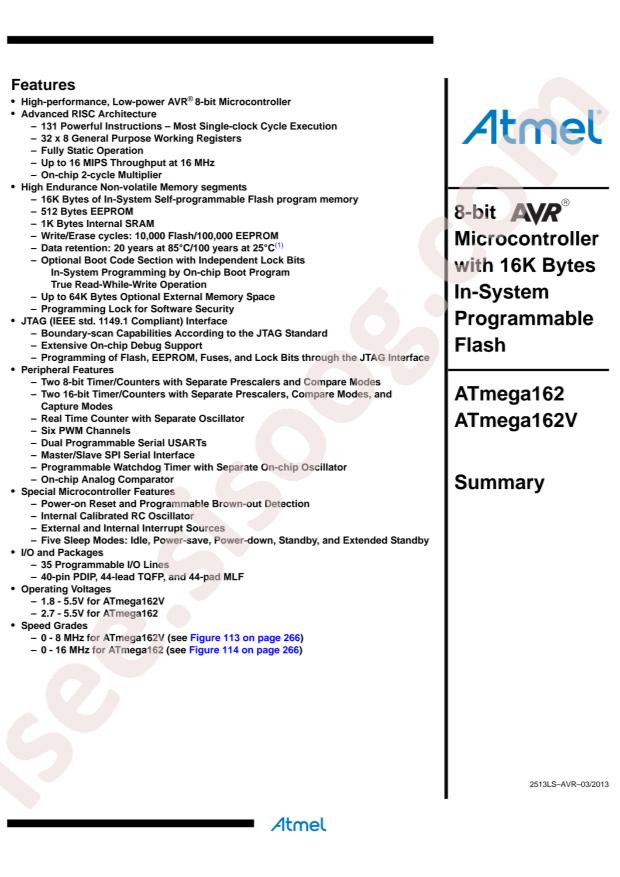

ATMEGA162(V) Summary Datasheet |
|---|
مشخصات
- CAN: -
- I2C: -
- I2S: -
- SPI: -
- RoHS: true
- EEPROM: 512Byte
- CPU Core: AVR
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 1KB
- Watchdog: Yes
- ADC (Bit): -
- DAC (Bit): -
- Datasheet: Microchip Tech ATMEGA162-16MUR
- PWM (Bit): -
- 8Bit Timer: -
- UART/USART: -
- 16Bit Timer: -
- 32Bit Timer: -
- Real-Time Clock: -
- CPU Maximum Speed: 16MHz
- GPIO Ports Number: 35
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: WDT
- Program Memory Type: FLASH
- Direct Memory Access: -
- Program Storage Size: 16KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 2.7V~5.5V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: QFN-44-EP(7x7)
- Manufacturer: Microchip Tech
- Series: AVR® ATmega
- Packaging: Cut Tape (CT)
- Part Status: Active
- Core Processor: AVR
- Core Size: 8-Bit
- Speed: 16MHz
- Connectivity: EBI/EMI, SPI, UART/USART
- Peripherals: Brown-out Detect/Reset, POR, PWM, WDT
- Number of I/O: 35
- Program Memory Size: 16KB (8K x 16)
- EEPROM Size: 512 x 8
- Voltage - Supply (Vcc/Vdd): 2.7V ~ 5.5V
- Data Converters: -
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 44-VFQFN Exposed Pad
- Supplier Device Package: 44-VQFN (7x7)
- Base Part Number: ATMEGA162
- detail: AVR AVR® ATmega Microcontroller IC 8-Bit 16MHz 16KB (8K x 16) FLASH 44-VQFN (7x7)
