دیتاشیت LT3021EDH-1.2#PBF
مشخصات دیتاشیت

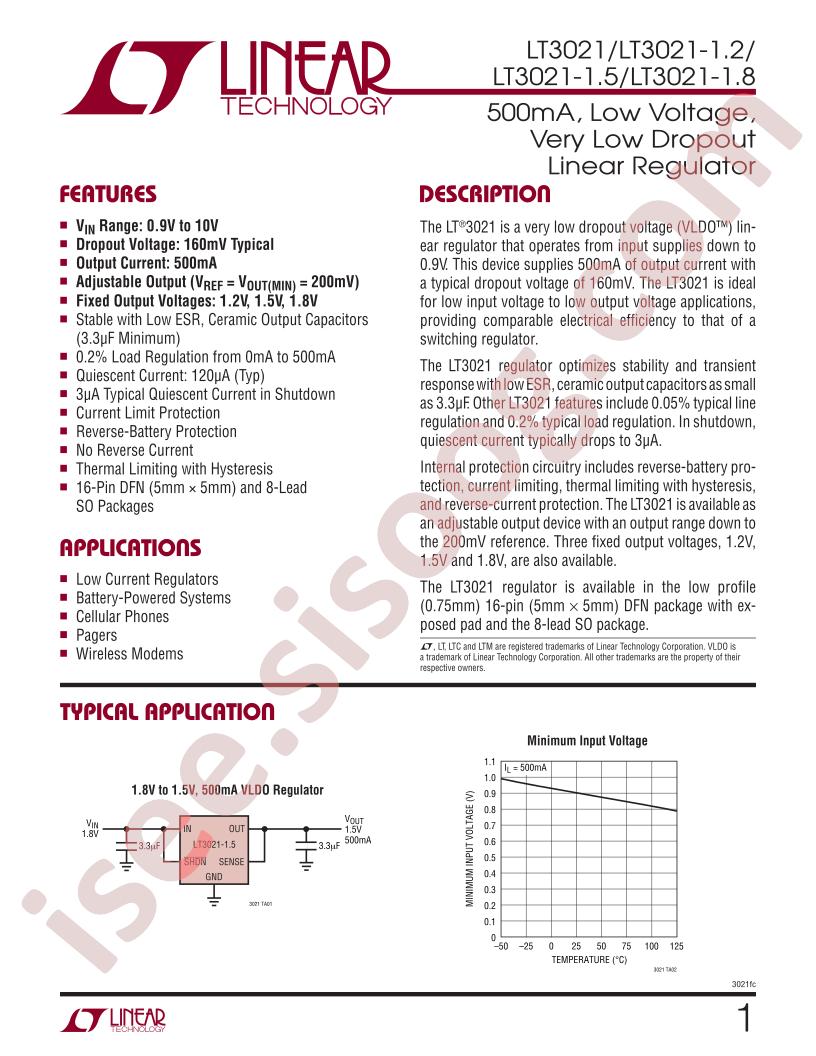

| نام دیتاشیت | LT3021(-1.2,-1.5,-1.8) Datasheet |
|---|---|
| حجم فایل | 178.286 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 16 |
دانلود دیتاشیت LT3021(-1.2,-1.5,-1.8) Datasheet |
LT3021(-1.2,-1.5,-1.8) Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Analog Devices LT3021EDH-1.2#PBF
- Output Current: 500mA
- Output Voltage: 1.2V
- Dropout Voltage: 0.285V@(500mA)
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 10V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 250uA
- Power Supply Rejection Ratio (PSRR): 60dB@(120Hz)
- Package: DFN-16(5x5)
- Manufacturer: Analog Devices
- Series: -
- Part Status: Obsolete
- Output Configuration: Positive
- Output Type: Adjustable
- Number of Regulators: 1
- Voltage - Input (Max): 10V
- Voltage - Output (Min/Fixed): 0.2V
- Voltage - Output (Max): 9.5V
- Voltage Dropout (Max): 0.285V @ 500mA
- Current - Output: 500mA
- Current - Quiescent (Iq): 250µA
- Current - Supply (Max): 10mA
- PSRR: 70dB (120Hz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature, Reverse Polarity
- Mounting Type: Surface Mount
- Package / Case: 16-WFDFN Exposed Pad
- Supplier Device Package: 16-DFN (5x5)
- detail: Linear Voltage Regulator IC 1 Output 500mA 16-DFN (5x5)
