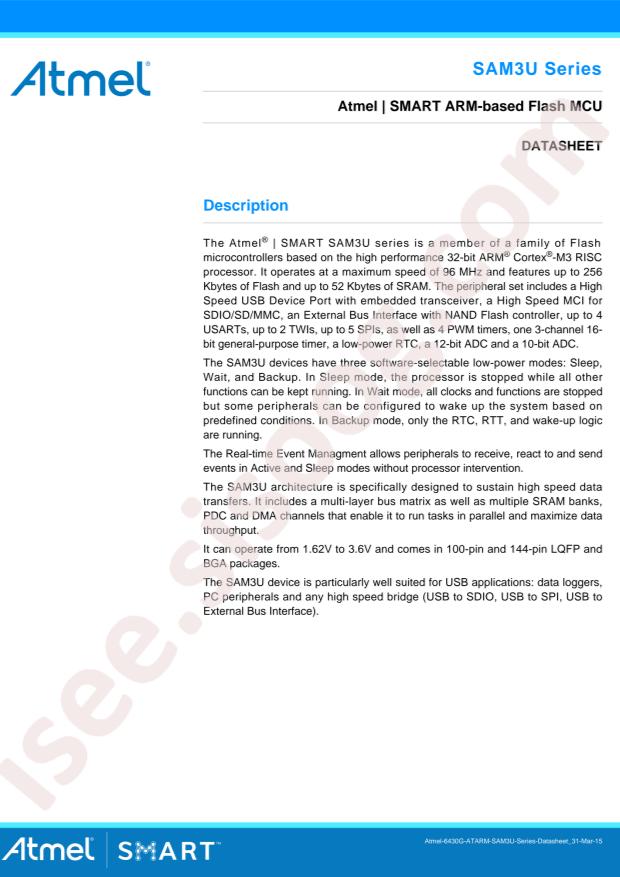

SAM3U Series دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SAM3U Series |
|---|---|
| حجم فایل | 4832.483 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 1163 |
دانلود دیتاشیت SAM3U Series |
دانلود دیتاشیت |
|---|
سایر مستندات
MICROCHIP ATSAM3U4EA-AU 1163 pages
مشخصات فنی
- RoHS: true
- CPU Core: ARM Cortex-M3
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- Watchdog: Yes
- ADC (Bit): 10bit;12bit
- Datasheet: Microchip Tech ATSAM3U1CB-CU
- CPU Maximum Speed: 96MHz
- GPIO Ports Number: 57
- Low-Voltage Detect: Yes
- Internal Oscillator: Yes
- Direct Memory Access: Yes
- Program Storage Size: 64KB
- Universal Serial Bus: Yes
- Operating Voltage Range: 1.62V~3.6V
- Operating Temperature Range: -40°C~+85°C
- Package: TFBGA-100
- Manufacturer: Microchip Tech
- Series: SAM3U
- Packaging: Tray
- Part Status: Active
- Core Processor: ARM® Cortex®-M3
- Core Size: 32-Bit
- Speed: 96MHz
- Connectivity: EBI/EMI, I²C, Memory Card, SPI, SSC, UART/USART, USB
- Peripherals: Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT
- Number of I/O: 57
- Program Memory Size: 64KB (64K x 8)
- Program Memory Type: FLASH
- EEPROM Size: -
- RAM Size: 20K x 8
- Voltage - Supply (Vcc/Vdd): 1.62V ~ 3.6V
- Data Converters: A/D 4x10b, 4x12b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 100-TFBGA
- Supplier Device Package: 100-TFBGA (9x9)
- Base Part Number: ATSAM3U
- detail: ARM® Cortex®-M3 SAM3U Microcontroller IC 32-Bit 96MHz 64KB (64K x 8) FLASH 100-TFBGA (9x9)
