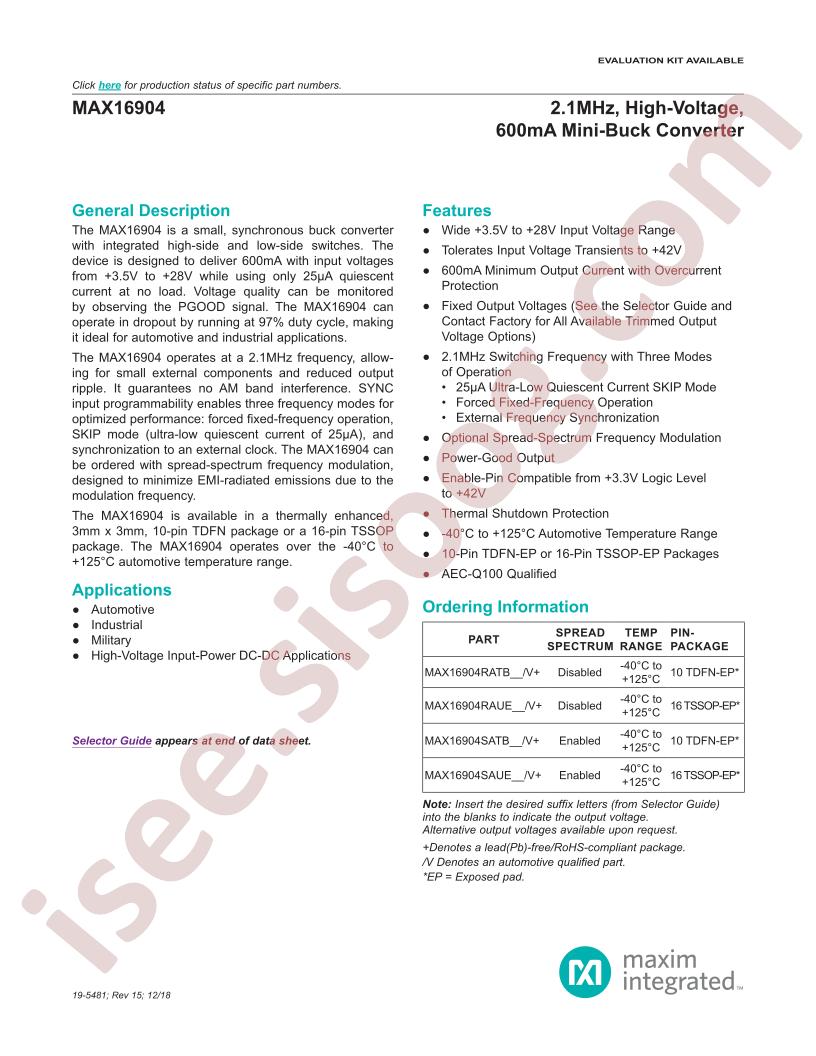

MAX16904 Series Datasheet دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت MAX16904 Series Datasheet	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: Analog Devices Inc./Maxim Integrated MAX16904RAUE50+
Output Type: Fixed
Input Voltage: 3.5V~28V
Output Voltage: 5V
Number of Outputs: 1
Switching Frequency: 2.1MHz
Output Current (Max): 600mA
Operating Temperature: -40°C~+125°C@(TJ)
Synchronous Rectification: Yes
Package: TSSOP-16-EP
Manufacturer: Analog Devices Inc./Maxim Integrated
Voltage - Input (Max): 28V
Voltage - Input (Min): 3.5V
Output Configuration: Positive
Supplier Device Package: 16-TSSOP-EP
Package / Case: 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
Frequency - Switching: 2.1MHz
Current - Output: 600mA
Part Status: Active
Series: Automotive, AEC-Q100
Voltage - Output (Max): -
Base Part Number: MAX16904
Mounting Type: Surface Mount
Synchronous Rectifier: Yes
Voltage - Output (Min/Fixed): 5V
Packaging: Tube
detail: Buck Switching Regulator IC Positive Fixed 5V 1 Output 600mA 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
