LT1720CMS8#PBF دیتاشیت

LT1720CMS8#PBF

مشخصات دیتاشیت

نام دیتاشیت LT1720CMS8#PBF
حجم فایل 103.909 کیلوبایت
نوع فایل pdf
تعداد صفحات 28

دانلود دیتاشیت LT1720CMS8#PBF

دانلود دیتاشیت

سایر مستندات

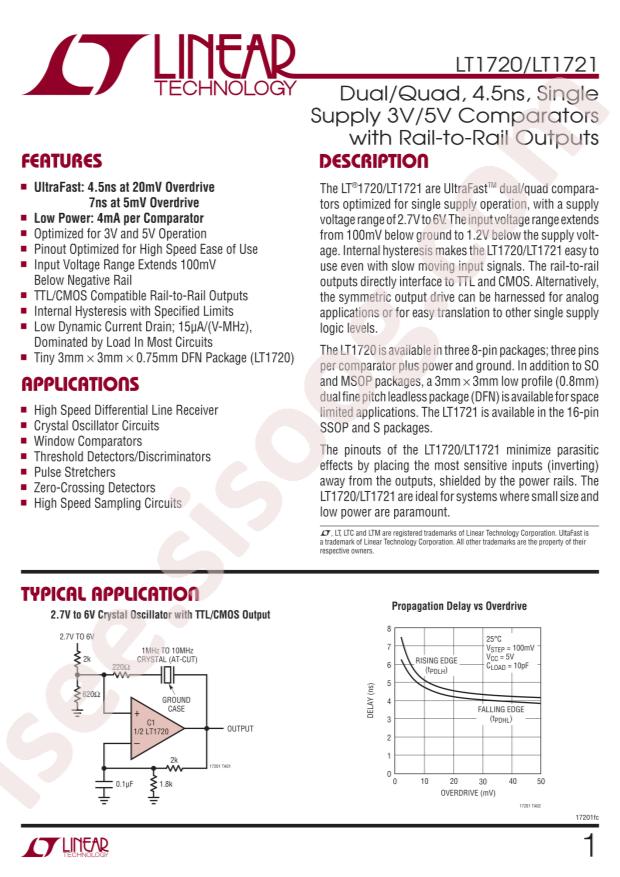

LT1720, LT1721 Datasheet 28 pages

مشخصات فنی

  • RoHS: true
  • Category: Operational Amplifier/Comparator/Comparators
  • Datasheet: Analog Devices LT1720CMS8#PBF
  • Output Type: CMOS;轨到轨;TTL
  • Supply Voltage: 2.7V~6V
  • Number of Elements: -
  • Operating Temperature: 0°C~+70°C
  • Input Bias Current (Ib): 6uA
  • Input Offset Voltage (Vos): 3mV
  • Input Hysteresis Voltage (Vhys): 7mV
  • Common Mode Rejection Ratio (CMRR): 70dB
  • Package: MSOP-8
  • Manufacturer: Analog Devices
  • Series: UltraFast™
  • Packaging: Tube
  • Part Status: Active
  • Type: General Purpose
  • Voltage - Supply, Single/Dual (±): 2.7V ~ 6V
  • Voltage - Input Offset (Max): 3mV @ 5V
  • Current - Input Bias (Max): 6µA @ 5V
  • Current - Output (Typ): 20mA
  • Current - Quiescent (Max): 7mA
  • CMRR, PSRR (Typ): 70dB CMRR, 80dB PSRR
  • Propagation Delay (Max): 10ns
  • Hysteresis: 7mV
  • Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 8-MSOP
  • Base Part Number: LT1720
  • detail: Comparator General Purpose CMOS, Rail-to-Rail, TTL 8-MSOP
