LTC3569EFE#PBF دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت LTC3569EFE#PBF	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down

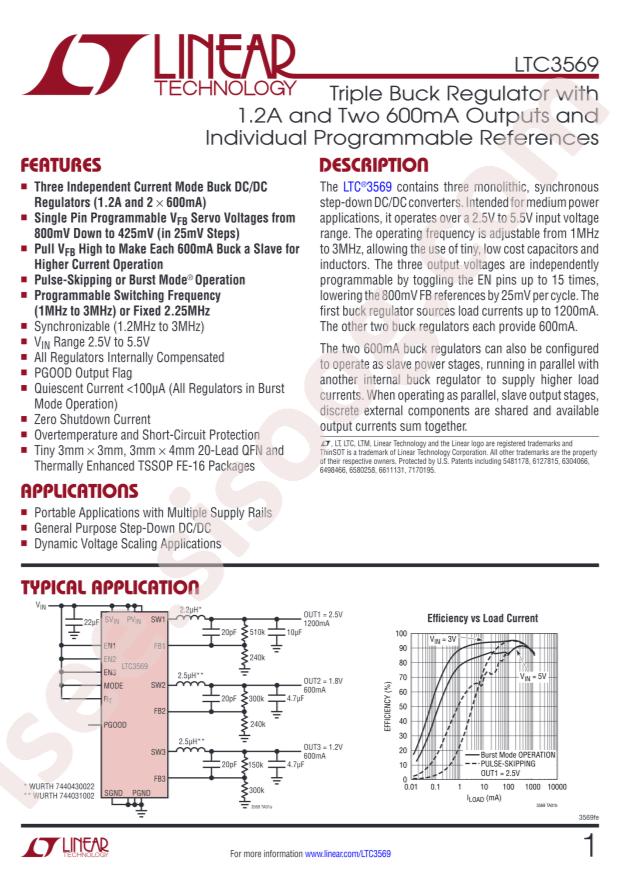

Datasheet: Analog Devices LTC3569EFE#PBF
Output Type: Adjustable
Input Voltage: 2.5V~5.5V
Output Voltage: 0.425V~5.5V
Number of Outputs: 3
Switching Frequency: 2.25MHz;3MHz
Output Current (Max): 600mA;1.2A
Operating Temperature: -40°C~+125°C@(TJ)
Synchronous Rectification: Yes
Package: TSSOP-16-EP
Manufacturer: Analog Devices
Series: -
Packaging: Tube
Part Status: Active
Output Configuration: Positive
Voltage - Input (Min): 2.5V
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): 0.425V
Voltage - Output (Max): 5.5V
Current - Output: 600mA, 1.2A
Frequency - Switching: 2.25MHz, 1MHz ~ 3MHz
Synchronous Rectifier: Yes
Mounting Type: Surface Mount
Package / Case: 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package: 16-TSSOP-EP
Base Part Number: LTC3569
detail: Buck Switching Regulator IC Positive Adjustable 0.425V 3 Output 600mA, 1.2A 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
