LT3086ER#PBF دیتاشیت

LT3086ER#PBF

مشخصات دیتاشیت

نام دیتاشیت LT3086ER#PBF
حجم فایل 127.939 کیلوبایت
نوع فایل pdf
تعداد صفحات 34

دانلود دیتاشیت LT3086ER#PBF

دانلود دیتاشیت

سایر مستندات

High Performance LDOs Selector Card 2 pages

LT308x Selector Card 2 pages

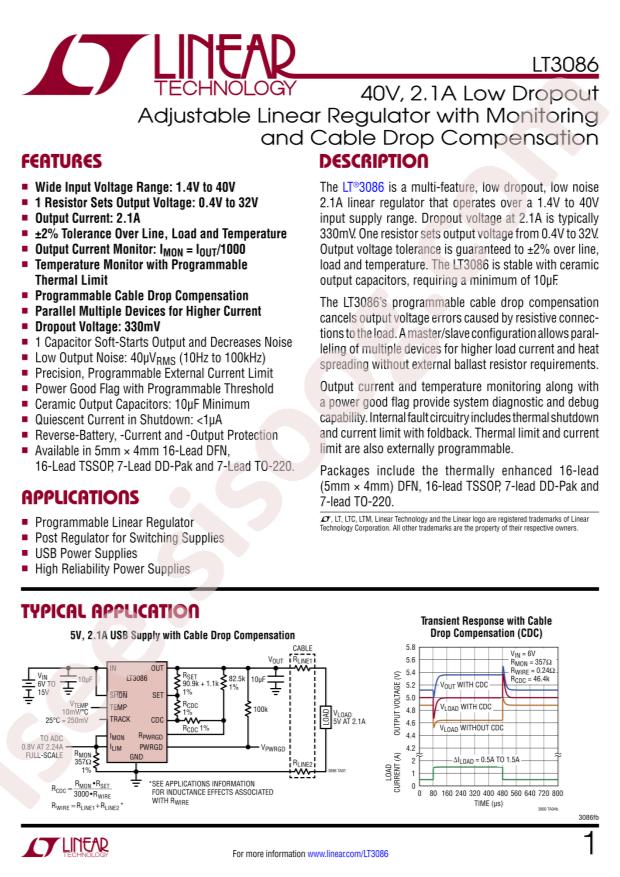

LT3086 Datasheet 34 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Analog Devices LT3086ER#PBF
  • Output Type: Adjustable
  • Output Current: 2.1A
  • Output Voltage: 0.4V~32V
  • Dropout Voltage: 0.54V@(2.1A)
  • Output Polarity: positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 40V
  • Operating Temperature: -40°C~+125°C
  • Quiescent Current (Ground Current): 2.4mA
  • Power Supply Rejection Ratio (PSRR): 80dB@(120Hz)
  • Package: TO-263-7
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Output Configuration: Positive
  • Number of Regulators: 1
  • Voltage - Input (Max): 40V
  • Voltage - Output (Min/Fixed): 0.4V
  • Voltage - Output (Max): 32V
  • Voltage Dropout (Max): 0.54V @ 2.1A
  • Current - Output: 2.1A
  • Current - Quiescent (Iq): 2.4mA
  • Current - Supply (Max): 88mA
  • PSRR: 80dB (120Hz)
  • Control Features: Current Limit, Enable, Power Good, Tracking
  • Protection Features: Over Current, Over Temperature, Reverse Polarity
  • Mounting Type: Surface Mount
  • Package / Case: TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
  • Supplier Device Package: 7-DDPAK
  • Base Part Number: LT3086
  • detail: Linear Voltage Regulator IC 1 Output 2.1A 7-DDPAK
