LTC1477CS8#TRPBF دیتاشیت

LTC1477CS8#TRPBF

مشخصات دیتاشیت

نام دیتاشیت LTC1477CS8#TRPBF
حجم فایل 102.446 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

دانلود دیتاشیت LTC1477CS8#TRPBF

دانلود دیتاشیت

سایر مستندات

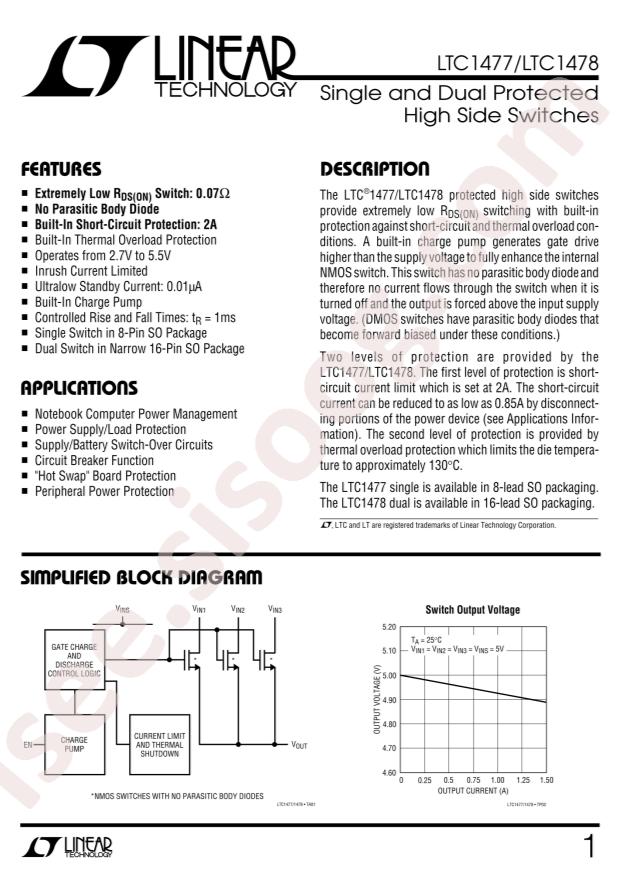

LTC1477, LTC1478 Datasheet 8 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Power Distribution Switches
  • Datasheet: Analog Devices LTC1477CS8#TRPBF
  • Input Voltage: 2.7V~5.5V
  • Output Current: 1A
  • Number of Outputs: 1
  • Resistor On-State: 70mΩ
  • Operating Temperature -: 0°C~+70°C
  • Package: SOP-8
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Switch Type: General Purpose
  • Ratio - Input:Output: 1:1
  • Output Configuration: High Side
  • Output Type: -
  • Interface: On/Off
  • Voltage - Load: 2.7V ~ 5.5V
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Current - Output (Max): 1A
  • Rds On (Typ): 70mOhm
  • Input Type: Non-Inverting
  • Features: -
  • Fault Protection: Current Limiting (Fixed), Over Temperature
  • Operating Temperature: 0°C ~ 70°C (TA)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 8-SOIC
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Base Part Number: LTC1477
  • detail: Power Switch/Driver 1:1 1A 8-SOIC
