دیتاشیت PIC16C55-XTI/SP
مشخصات دیتاشیت
| نام دیتاشیت | PIC16C5x Data Sheet |
|---|---|
| حجم فایل | 2502.299 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 192 |

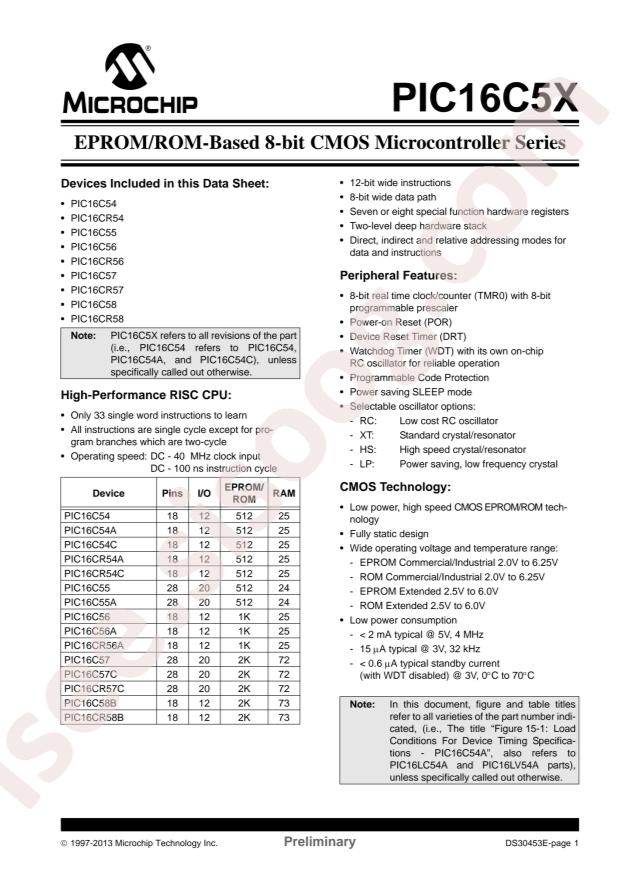

دانلود دیتاشیت PIC16C5x Data Sheet |
PIC16C5x Data Sheet Datasheet |
|---|
مشخصات
- RoHS: true
- EEPROM: -
- CPU Core: PIC
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 24Byte
- Watchdog: Yes
- ADC (Bit): -
- DAC (Bit): -
- Datasheet: Microchip Tech PIC16C55-XTI/SP
- PWM (Bit): -
- Real-Time Clock: -
- CPU Maximum Speed: 4MHz
- GPIO Ports Number: 20
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: -
- Peripheral/Function: WDT
- Program Memory Type: -
- Direct Memory Access: -
- Program Storage Size: -
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 3V~6.25V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: SPDIP-28
- Manufacturer: Microchip Tech
- Series: PIC® 16C
- Packaging: Tube
- Part Status: Active
- Core Processor: PIC
- Core Size: 8-Bit
- Speed: 4MHz
- Connectivity: -
- Peripherals: POR, WDT
- Number of I/O: 20
- Program Memory Size: 768B (512 x 12)
- EEPROM Size: -
- Voltage - Supply (Vcc/Vdd): 3V ~ 6.25V
- Data Converters: -
- Oscillator Type: External
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Through Hole
- Package / Case: 28-DIP (0.300", 7.62mm)
- Supplier Device Package: 28-SPDIP
- Base Part Number: PIC16C55
- detail: PIC PIC® 16C Microcontroller IC 8-Bit 4MHz 768B (512 x 12) OTP 28-SPDIP
